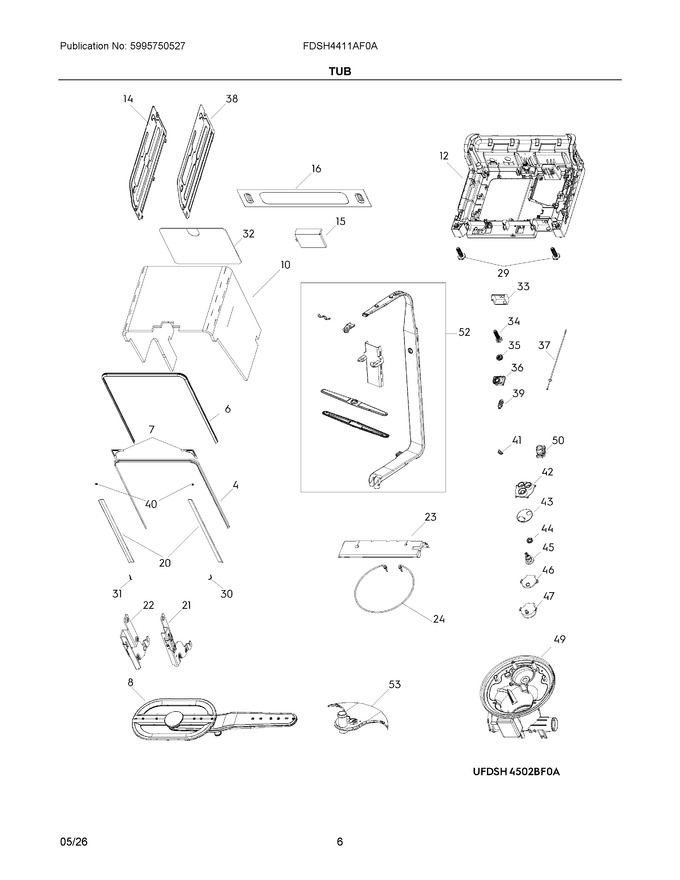

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5304538999		Seal Frame, Tub		Appelez-nous	-
7	5304539000		Bracket, Corner, Tub		Appelez-nous	-
8	4056012786		Lower Sprayer				$ 119.48
10	4056012729		Insulation, Noise Absorb				$ 35.14
12	4056018106		Drip Tray, Bottom		Appelez-nous	-
14	5304539020		Side Panel, Base Tray		Appelez-nous	-
15	5304539023		Box, Junction B				$ 6.12
16	5304539024		Baffle Plate, Lower Front			Immediately	$ 12.29
19	4056014295		Roller Assembly, Rail		Appelez-nous	-
21	5304538986		Hinge, Door, Rh				$ 20.54
22	5304538987		Hinge, Door, Lh				$ 20.54
23	5304539003		Cross Piece, Lower Front		Appelez-nous	-
26	5304516630		Heater Assembly, Tub				$ 207.49
29	5304516642		Leg, Leveling, (4)				$ 15.90
30	4056012745		Inner Tank, Protective, Strip, Rh				$ 2.09
31	4056012752		Inner Tank, Protective, Strip, Lh				$ 2.09
32	4056012760		Dampener, Vibration		Appelez-nous	-
33	5304539014		Box, Junction		Appelez-nous	-
34	5304539015		Foot-adjustable, Tray			Immediately	$ 3.62
35	5304539016		Wheel, Worm		Appelez-nous	-
36	5304539017		Gear, Worm Wheel		Appelez-nous	-
37	5304539018		Rod, Gear Connection		Appelez-nous	-
38	5304539025		Side Panel, Base Tray, Rh		Appelez-nous	-
39	5304539019		Adjusting Screw, Gear		Appelez-nous	-
40	5304539026		Switch, Float				$ 11.28
41	5304539027		Cover, Chassis		Appelez-nous	-
42	5304539029		Cover, Water Cup		Appelez-nous	-
43	5304539030		Lever, Diversion, Water Cup		Appelez-nous	-
44	5304539031		Seal Ring, Water Cup		Appelez-nous	-
45	5304539032		Cam, Water Cup		Appelez-nous	-
46	5304539033		Sleeve, Water Cup		Appelez-nous	-
47	5304539034		Motor, Synchronous, Water Cup				$ 31.55
49	5304539036		Sensor, Temperature, Water Cup		Appelez-nous	-
50	5304539035		Water Cup, Assembly		Appelez-nous	-
52	5304539042		Manifold, Delivery Tube, Inner				$ 60.15
53	5304539043		Spray Arm, Lower				$ 8.19
54	5304519236		Holder, Rack Roller		Appelez-nous	-
55	5304537616		Upper Basket, Guider, Left		Appelez-nous	-
56	5304537625		Upper Basket Guider, Right		Appelez-nous	-
57	5304516628		Gasket, Tub		Appelez-nous	-
NI	4056066600		Installation Kit		Appelez-nous	-
NI	5304516636		Gasket, Washer, (3)				$ 11.71
NI	4056046503		Tape, Anti-steam		Appelez-nous	-
