SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Door


04 - Tub


05 - Motor & Pump


06 - Racks


07 - Wiring Diagram

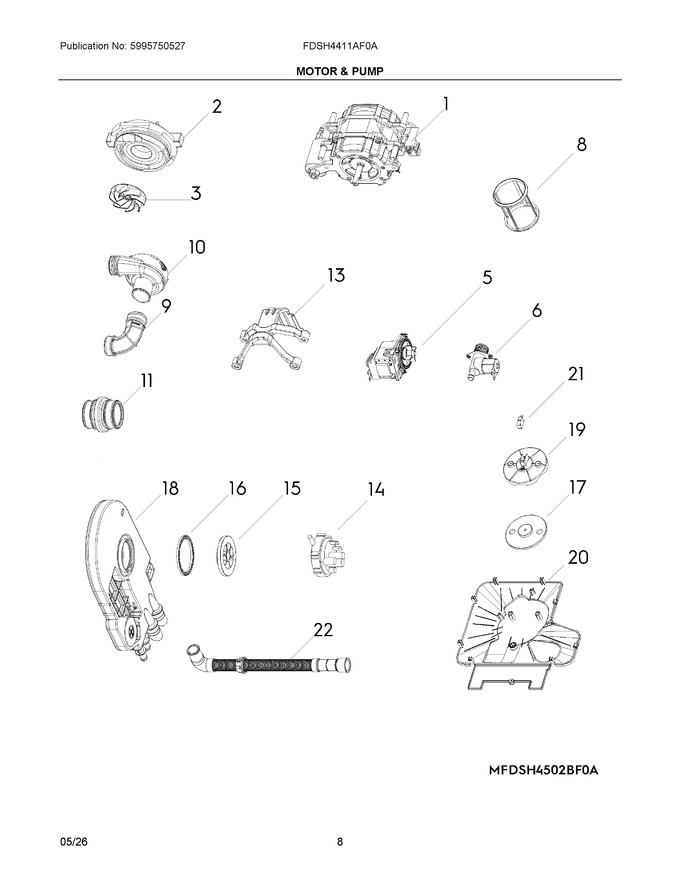

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304539038		Motor, Asynchronous, Single Phase				$ 161.64
2	5304539039		Cover, Lower Pump				$ 5.45
3	5304539040		Impeller, Pump				$ 3.47
5	5304537633		Drain Pump				$ 61.34
6	5304537634		Inlet Valve			Immediately	$ 41.43
8	5304539028		Filter, Cylindrical				$ 13.79
9	5304516685		Tube, Inlet			Immediately	$ 69.46
10	5304516686		Housing, Impeller			Immediately	$ 37.57
11	5304516687		Tube, Outlet			Immediately	$ 42.53
12	5304483441		Thermistor			Immediately	$ 43.95
13	5304519250		Support, Assembly, Pump		Appelez-nous	-
14	5304516645		Switch, Pressure			Immediately	$ 96.14
15	5304539037		Outlet, Ventilation, Tub		Appelez-nous	-
16	5304516636		Gasket, Washer, (3)				$ 11.71
17	5304516654		Float				$ 15.33
18	5304516635		Air Breather, Assembly		Appelez-nous	-
19	5304516652		Seat Bracket, Float		Appelez-nous	-
20	5304539027		Cover, Chassis		Appelez-nous	-
21	5304539026		Switch, Float				$ 11.28
22	4056022884		Drain Hose, Assembly			Immediately	$ 23.43
