SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Door


04 - Tub


05 - Motor & Pump


06 - Racks


07 - Wiring Diagram

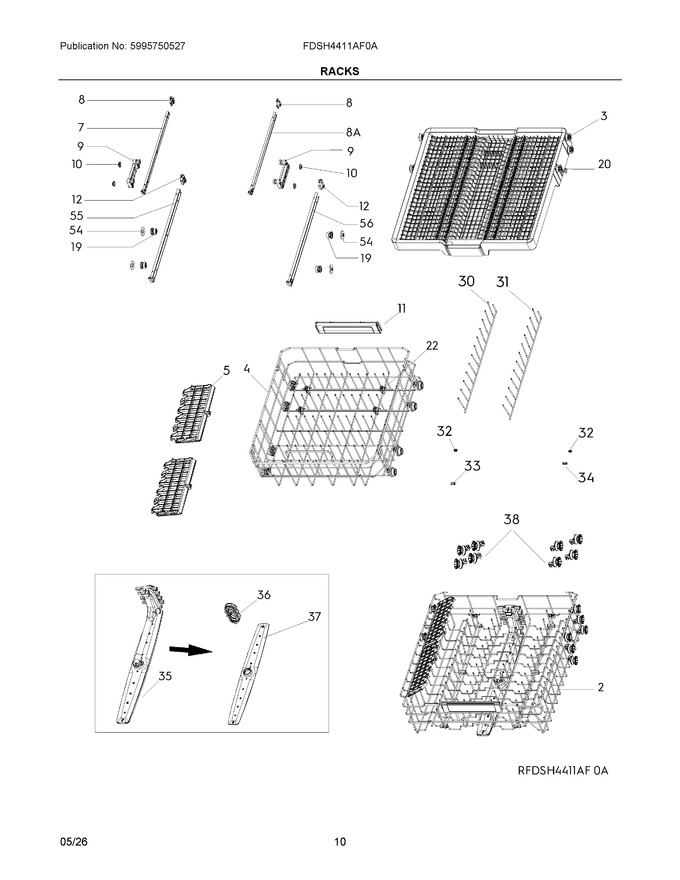

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4056035878		Upper Basket, Assembly, Middle Rack		Appelez-nous	-
3	4056066576		Cutlery Basket, Assembly		Appelez-nous	-
4	4056012802		Lower Basket, Assembly		Appelez-nous	-
5	4056012810		Cup Holder		Appelez-nous	-
7	5304539006		Guide Rail, Assembly		Appelez-nous	-
8	5304539005		Stopper, Rack Glide				$ 1.56
9	5304539007		Rail Support, Assembly		Appelez-nous	-
10	5304539008		Block, Support		Appelez-nous	-
11	4056066592		Handle Assembly		Appelez-nous	-
12	5304539009		Clamp, Rail		Appelez-nous	-
20	4056066584		Roller, Cutlery Basket		Appelez-nous	-
22	5304539046		Spikes, Lower Basket		Appelez-nous	-
30	5304539049		Spikes, Upper Basket, Lh		Appelez-nous	-
31	5304539052		Spikes, Upper Basket, Rh		Appelez-nous	-
32	5304539050		Stopper, Upper Basket, Lh		Appelez-nous	-
33	5304539051		Blocker, Upper Basket, Lh		Appelez-nous	-
34	5304539053		Blocker, Upper Basket, Rh		Appelez-nous	-
35	5304539054		Sprayer, Assembly, Upper		Appelez-nous	-
36	5304539055		Gasket, Upper Sprayer		Appelez-nous	-
37	5304539058		Sprayer, Upper		Appelez-nous	-
38	5304539059		Roller, Assembly, Upper Basket		Appelez-nous	-
8A	5304539010		Guide Rail, Assembly, Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
