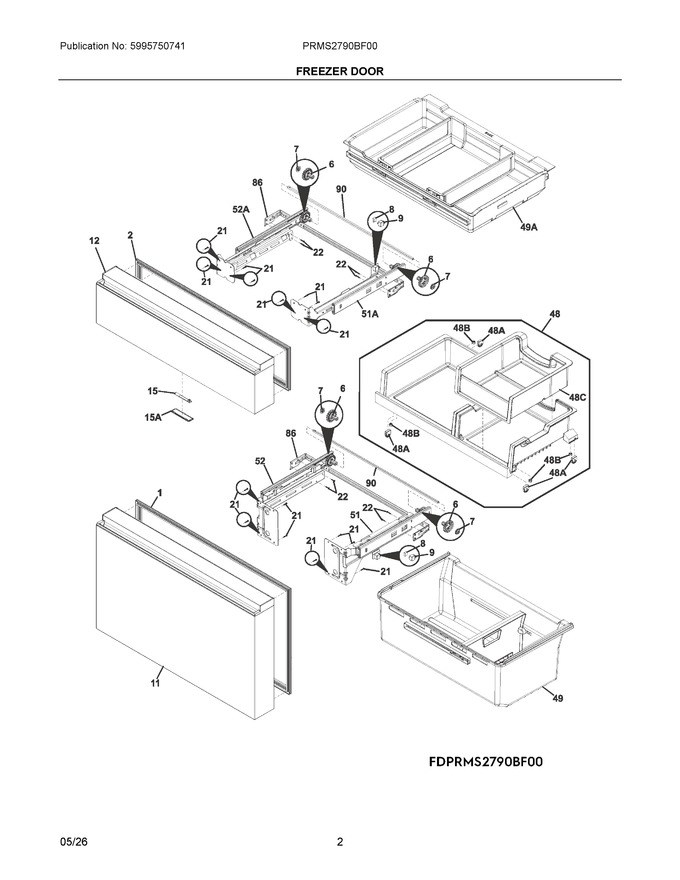

02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304519037		Gasket, Door, Freezer			Immediately	$ 53.51
2	5304519038		Gasket, Door, Middle				$ 58.84
6	140025649017		Gear, Pinion   (Replaces: 140025649033)			Immediately	$ 4.58
7	5304519043		Bearing, Pad, Gear				$ 9.86
8	140026775019		Sensor, Magnet, Switch, Reed				$ 4.11
9	5304535665		Support, Magnet, White				$ 3.33
11	140281015390		Door Assembly Complete, Freezer Drawer, Stainless				$ 273.11
12	140281015382		Door Assembly Complete, Middle Drawer, Stainless		Appelez-nous	-
15	140155609047		Led Pcb, Light Board, 3 Led Cluster, 6500k				$ 17.43
21	811949401		Screw, Trilob, M5 X 16			Immediately	$ 5.31
22	5304519053		Screw, M3.5 X 6		Appelez-nous	-
48	140132232152		Drawer Freezer, Assembly, W/ice Container		Appelez-nous	-
49	5304534911		Basket Assembly, Freezer Drawer, W/divider		Appelez-nous	-
51	5304534895		Slider, Assembly, Rh Freezer				$ 184.34
52	5304534894		Slider, Assembly, Lh Freezer			Immediately	$ 183.09
86	5304536612		Bracket, Reinforcement		Appelez-nous	-
90	5304524002		Shaft, Slider, Telescopic				$ 59.91
15A	5304526839		Lens, Single Light, White			Immediately	$ 9.10
48A	5304519055		Roller, Drawer		Appelez-nous	-
48B	5304532074		Cushion, Rubber, Freezer Drawer		Appelez-nous	-
48C	140207960034		Drawer, Ice Container, Freezer		Appelez-nous	-
49A	140062292192		Drawer Freezer, Assembly, Middle Drawer, W/dividers		Appelez-nous	-
51A	5304534897		Slider, Assembly, Rh Middle Drawer				$ 184.71
52A	5304534896		Slider, Assembly, Lh Middle Drawer				$ 178.72
NI	808337901		Screw, Pf Ab Pfz Pf, 3.5x1.27x19				$ 3.03
NIA	5304519084		Screw, Flange Pnhd Phl, 8g X 1/2		Appelez-nous	-
NIBA	811949503		Screw, Truss, 4.2 X 13				$ 3.03
