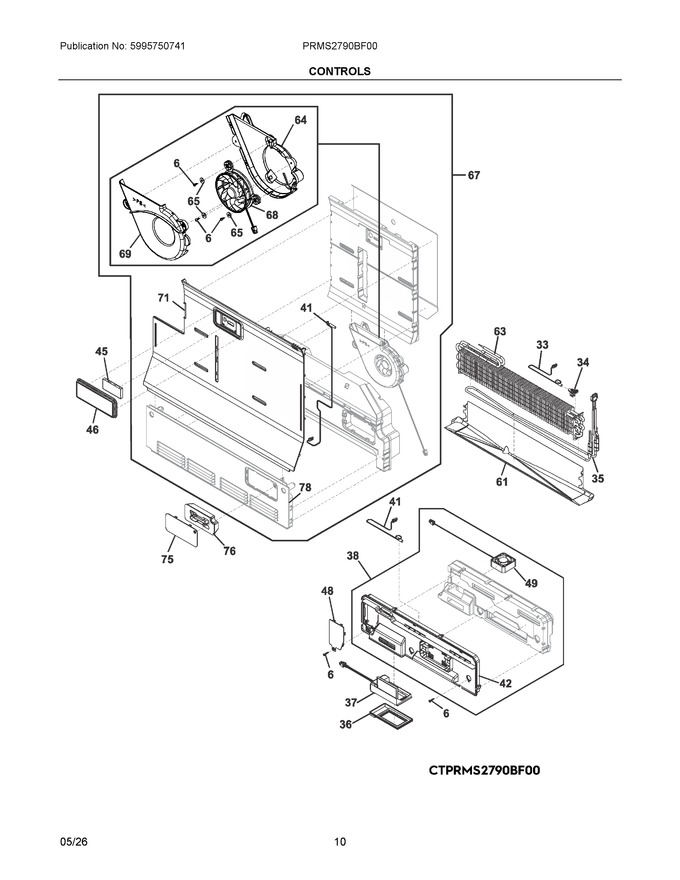

PRMS2790BF00 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
6	811949503	Screw, Truss, 4.2 X 13			$ 3.03
33	5303918851	Thermostat Kit, Defrost, W/connectors		Immediately	$ 36.75
34	811980406	Clamp, Ntc, Evaporator			$ 4.19
35	140159197049	Heater Defrost, Evaporator			$ 103.24
36	5304523686	Seal, Baffle Assembly			$ 32.96
37	5304519166	Baffle Assembly, Air Damper, Middle Drawer		Immediately	$ 129.08
38	140040732079	Cover Assembly, Middle Flow, Wo/heater	Appelez-nous	-
41	5303918775	Thermistor Kit, Temperature, Ntc, W/connectors		Immediately	$ 23.74
42	5304519170	Cover, Air Duct, Middle Drawer	Appelez-nous	-
45	PAULTRA2	Pure Air Ultra 2, Air Filter		Immediately	$ 42.18
46	5304523057	Cover, Air Filter, Stainless, Fresh Food			$ 48.44
48	5304519172	Cover, Window, Middle Drawer			$ 11.17
49	5304519173	Fan Assembly, Middle Drawer, W/sleeve		Immediately	$ 137.93
61	5304519180	Drain Trough, Evaporator, Fresh Food	Appelez-nous	-
63	5304526811	Evaporator, Assembly, Fresh Food		Immediately	$ 168.00
64	5304526813	Plate, Fan Mounting, Fresh Food	Appelez-nous	-
65	5304519183	Washer, Flat	Appelez-nous	-
67	140040769170	Cover Assembly Complete, Evaporator, Refrigerator	Appelez-nous	-
68	140155551017	Fan Assembly, Evaporator, Fresh Food, 125 Mm		Immediately	$ 120.25
69	5304526812	Housing, Fan, Fresh Food	Appelez-nous	-
71	5304523059	Cover, Air Duct, Stainless, Fresh Food, W/gaskets			$ 240.40
75	5304519189	Cover, Window, Fresh Food	Appelez-nous	-
76	5304522062	Insulation, Window, Eps, Fresh Food	Appelez-nous	-
78	140040774063	Cover Evaporator, Air Vent Grid	Appelez-nous	-
NI	5304519098	Screw, Trilob, M4 X 12			$ 3.03
NI	241641505	Screw, Hilo Phil Pn, .5", White	Appelez-nous	-
