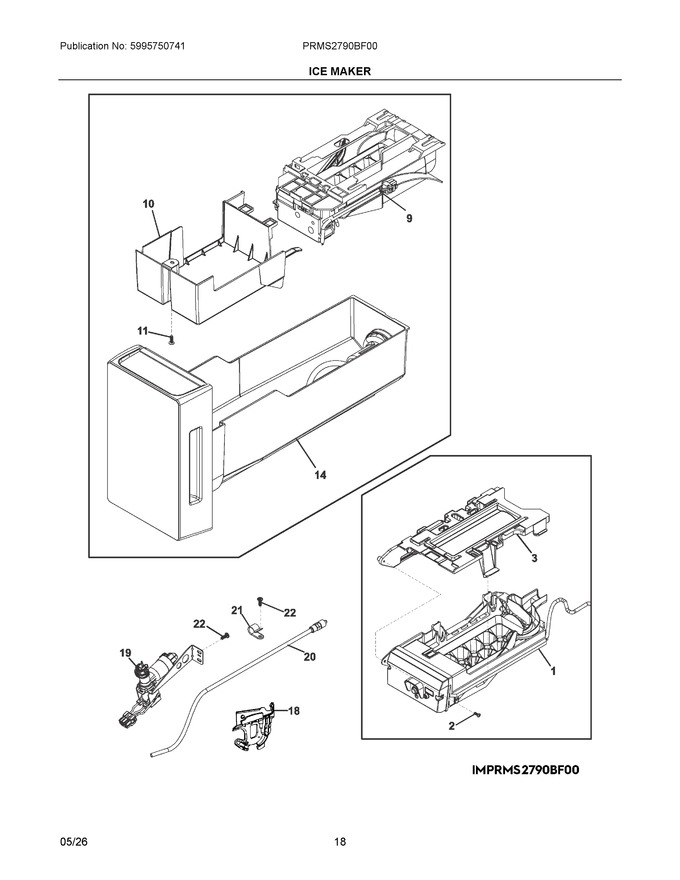

10 - Ice Maker


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304532556		Ice Maker, Assembly, Freezer, Twist Tray			Immediately	$ 146.61
2	241641502		Screw, Hilo Phil Pn, 8-18 X 3/8				$ 8.51
3	5303918907		Ice Maker Kit, Cover & Bracket		Appelez-nous	-
9	243297608		Ice Maker, Assembly, Fresh Food, 115 V, Twist Tray			Immediately	$ 164.41
10	5304534892		Cover, Harness, Ff Ice Maker		Appelez-nous	-
11	5304453707		Screw, Quad Hilo Sts, #8-18   (Replaces: 241953909)			Immediately	$ 15.92
14	5304534893		Bucket Assembly, Ice Container, W/moving Parts		Appelez-nous	-
18	140250227018		Bracket, Water Valve			Immediately	$ 4.17
19	5304536607		Valve, Water, Single			Immediately	$ 102.65
20	5304538933		Tube Assembly, Inlet Water, W/connector		Appelez-nous	-
21	240396801		Clamp, Tube/wiring, 1/2", Nylon, Black/natural				$ 19.13
22	811949503		Screw, Truss, 4.2 X 13				$ 3.03
NI	811948501		Cable Tie, 2.5 X 120		Appelez-nous	-
NI	5304534887		Clamp, Water Tube				$ 8.87
