Diagram for 08 - Ice & Water Dispenser
08 - Ice & Water Dispenser

Diagram for 09 - Ice Container
09 - Ice Container

Diagram for 10 - Ice Maker
10 - Ice Maker

Diagram for 11 - Wiring Diagram
11 - Wiring Diagram


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 5304519194 Guide, Water Tube, Dispenser Special Order $ 11.53

8 5304529571 Dispenser Assembly, Ice & Water, W/harness-led In-Stock Immediately $ 196.01

14 140050906423 Display Panel, Overlay Ui, Water Distributor Appelez-nous -
24 5304523071 Paddle Assembly, Dispenser Special Order $ 41.87

38 140270898236 Display Board Assembly, Ice & Water, User Interface Appelez-nous -
82 241953902 Screw, Quad Hilo, #8-18 X 0.25   (Replaces: 241953907) In-Stock Immediately $ 17.11

38C 5304523072 Switch, Disp Paddle In-Stock Immediately $ 46.06

NIA 5304519199 Spring, Paddle Assembly In-Stock Immediately $ 6.11


    View Diagram in Separate Window     Print Icon   Print Part List

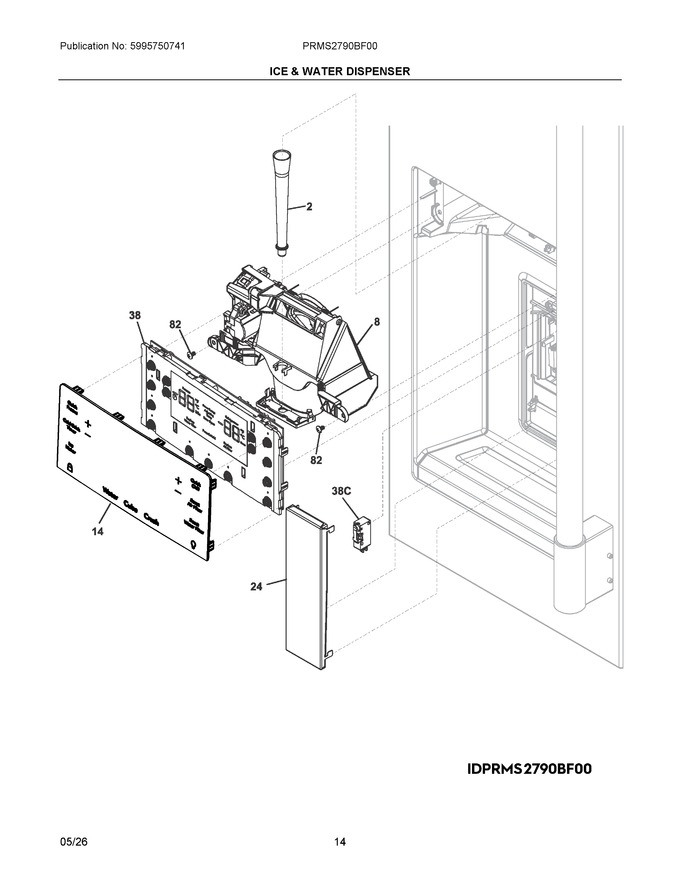

Diagram for PRMS2790BF00
