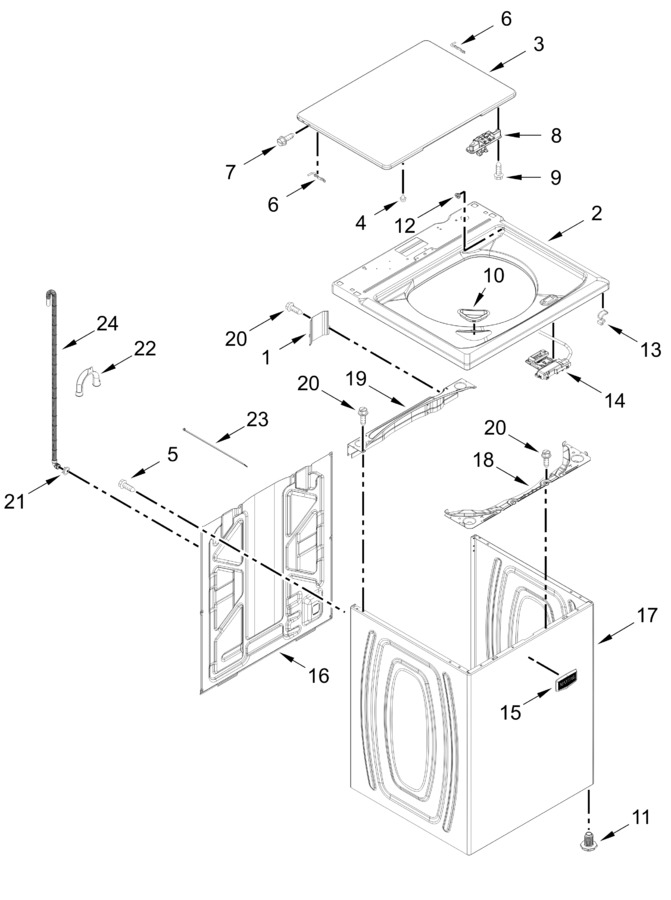

Top And Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10676061		Cover, Harness				$ 31.52
2	W11210992		Top (white)   (Replaces: W10686446)			Immediately	$ 263.78
3	W10860912		Lid And Bumper Assembly (white)   (Replaces: W10027624)				$ 332.63
4	WP9724509		Bumper   (Replaces: 9724509)			Immediately	$ 7.14
5	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.07
6	WP91770		Hinge, Lid (left)   (Replaces: 91770)				$ 24.71
7	WPW10119828		Screw   (Replaces: W10119872)			Immediately	$ 6.47
8	W10837741		Lid Lock Strike (white)   (Replaces: W10714899)			Immediately	$ 26.69
9	WPW10273971		Screw   (Replaces: W10273971)			Immediately	$ 6.47
10	WPW10192089		Dispenser, Bleach   (Replaces: W10192089)			Immediately	$ 7.16
11	W11213957		Foot Leveling Assembly   (Replaces: W11179235)			Immediately	$ 12.20
12	WP21258		Bearing, Lid Hinge   (Replaces: 21258)			Immediately	$ 6.87
13	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.19
14	W11399614		Latch, Lid Lock Assembly   (Replaces: W11390347)		Appelez-nous	-
15	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 36.31
16	W11486091		Panel, Rear   (Replaces: W11417173)			Immediately	$ 280.90
17	W10596395		Cabinet (white)   (Replaces: W10478060)				$ 412.97
18	W11661767		Channel, Top Front   (Replaces: W11634044)		Appelez-nous	-
19	W11712680		Channel, Top Rear   (Replaces: W10512626)				$ 89.04
20	W11685943		Screw   (Replaces: W10660565)				$ 12.83
21	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
22	WPW10280024		U-bend, Drain Hose   (Replaces: W11705656)				$ 71.58
23	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 7.11
24	W11764699		Outer Drain Hose   (Replaces: W11703202)				$ 35.14
	WP54583		Hinge, Lid (right)   (Replaces: 54583)				$ 26.60

    View Diagram in Separate Window       Print Part List
