SELECT A DIAGRAM

Basket And Tub Parts


Controls And Water Inlet Parts


Gearcase, Motor And Pump Parts


Optional Parts (not Included)


Top And Cabinet Parts

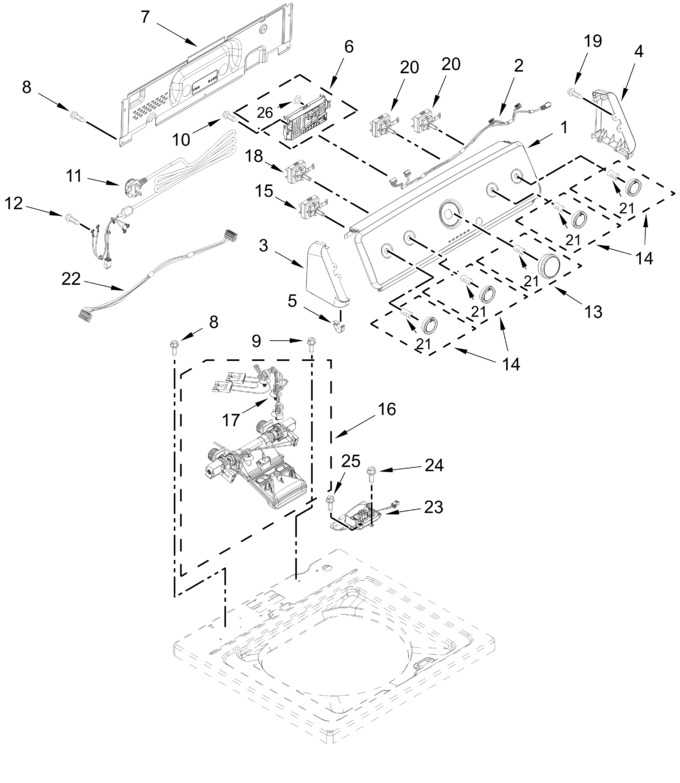

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11099689		Panel, Console   (Replaces: W10774533)		Appelez-nous	-
2	W10694685		Harness, Upper				$ 162.93
3	W10193826		End Cap (white, Left)		Appelez-nous	-
4	W10193823		End Cap (white, Right)		Appelez-nous	-
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.72
6	W11608079		Control Unit Assembly, Machine And Motor   (Replaces: W11578962)		Appelez-nous	-
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 308.94
8	W11685943		Screw   (Replaces: W10660565)				$ 12.83
9	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 6.47
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.04
11	W11369863		Cord, Power		Appelez-nous	-
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 6.98
13	W11837899		Timer Knob Assembly (grey)   (Replaces: W10558463)				$ 16.14
14	W11837893		Control Knob Assembly (grey)   (Replaces: W10562155)				$ 16.14
15	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 163.26
16	W11038628		Water Inlet Assembly   (Replaces: W11026622)				$ 209.92
17	W10917060		Harness, Valve		Appelez-nous	-
18	WPW10285518		Switch, Rotary Encoder (5 Position)   (Replaces: W10285518)			Immediately	$ 105.68
19	W11693756		Screw   (Replaces: 359625)			Immediately	$ 12.65
20	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 156.09
21	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.03
22	W10694669		Harness, Jumper				$ 72.95
23	W11660637		Line Filter Assembly   (Replaces: W10906192)		Appelez-nous	-
24	W11568617		Screw   (Replaces: W10567155)				$ 12.62
25	3400618		Screw				$ 58.23
26	W10318627		O-ring				$ 14.53
