Basket And Tub Parts
Controls And Water Inlet Parts

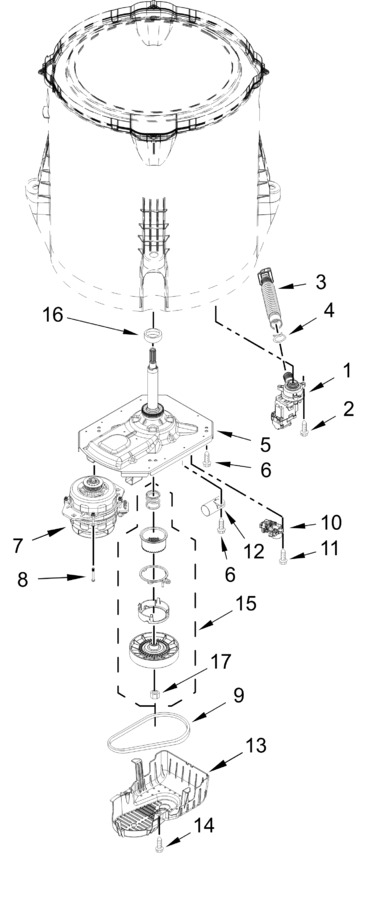

Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10297344 | Drain Pump Assembly (Replaces: W10297344) |
|
Immediately | $ 136.58 | ||||
| 2 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 7.16 | |||||
| 3 | W10899966 | Hose, Inner Drain Assembly (Replaces: W10763078) |
|
Immediately | $ 30.67 | ||||
| 4 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 7.55 | ||||
| 5 | W11454372 | Gearcase Assembly (Replaces: W10903968) |
|
Immediately | $ 269.82 | ||||
| 6 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 6.47 | ||||
| 7 | W11039789 | Motor, Drive (Replaces: W11028436) |
|
$ 289.91 | |||||
| 8 | W11685857 | Screw (Replaces: W10094780) |
|
$ 12.69 | |||||
| 9 | W11239857 | Belt, Drive (Replaces: W10808317) |
|
Immediately | $ 47.19 | ||||
| 10 | W11511138 | Actuator, Shift (Replaces: W11398782) |
|
Immediately | $ 82.53 | ||||
| 11 | W11596033 | Screw (Replaces: 9741052) |
|
$ 12.20 | |||||
| 12 | W11168653 | Capacitor, Motor Run (Replaces: W10625044) |
|
$ 209.75 | |||||
| 13 | W11409708 | Shield, Pulley Cover (Replaces: W11087188) |
|
Immediately | $ 39.27 | ||||
| 14 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 7.04 | ||||
| 15 | W10721967 | Splutch Kit (60hz) |
|
Immediately | $ 50.11 | ||||
| 16 | WP8577374 | Seal, Centerpost (Replaces: 8577374) |
|
Immediately | $ 6.47 | ||||
| 17 | W10759923 | Nut (Replaces: W10604214) |
|
$ 6.88 |
