Basket And Tub Parts


Controls And Water Inlet Parts


Gearcase, Motor And Pump Parts


Optional Parts (not Included)


Top And Cabinet Parts

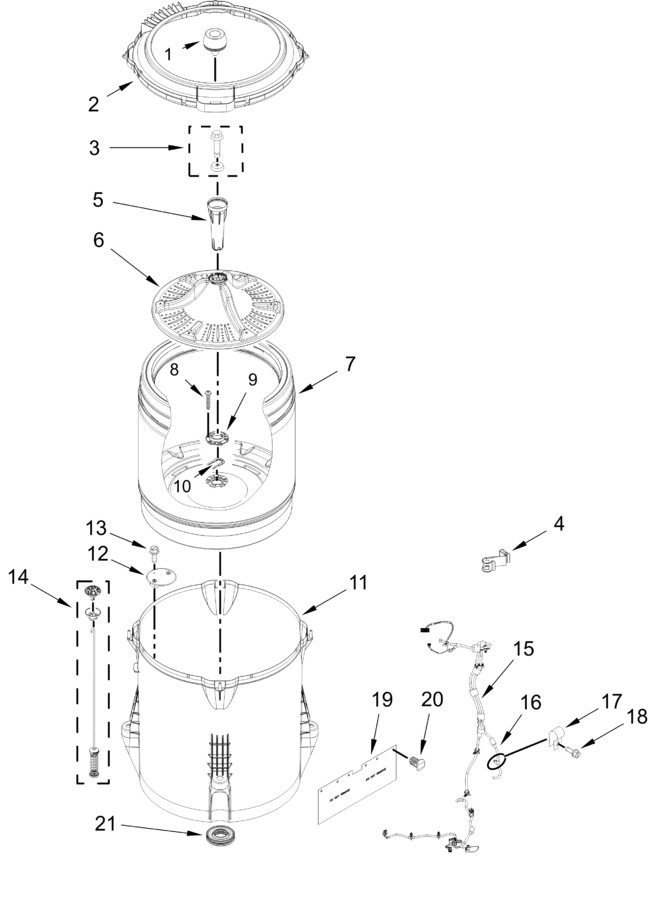

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11024702		Dispenser, Fabric Softener   (Replaces: W10680192)				$ 69.25
2	W11550886		Tub Ring   (Replaces: W11043544)			Immediately	$ 84.88
3	W11223765		Bolt And Washer   (Replaces: W11121786)			Immediately	$ 13.03
4	W11755726		Clip, Harness   (Replaces: W11284522)			Immediately	$ 6.62
5	W10836692		Barrel, Agitator   (Replaces: W10680220)			Immediately	$ 104.90
6	W10919191		Impeller (washplate)   (Replaces: W10680219)			Immediately	$ 146.36
7	W11172199		Basket Assembly			Immediately	$ 347.36
8	WP8533953		Screw   (Replaces: 8533953)			Immediately	$ 6.47
9	W10528947		Hub Driven Basket   (Replaces: W11674590)			Immediately	$ 39.81
10	W11385424		Retainer, Drive Block   (Replaces: W11284133)			Immediately	$ 11.12
11	W10371566		Tub   (Replaces: W10238320)				$ 305.43
12	WPW10215093		Filter, Drain Pump   (Replaces: W10215093)				$ 55.94
13	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 7.04
14	W11217817		Damper Assembly, Tub Suspension (set Of 4, Includes Suspension Bushings And Suspension Balls)   (Replaces: W11226768)			Immediately	$ 124.40
15	W11369989		Harness, Lower		Appelez-nous	-
16	WP353244		Hose, Pressure Switch   (Replaces: W10236981)			Immediately	$ 53.94
17	W10005430		Clamp, Cable			Immediately	$ 8.17
18	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 7.20
19	W10339098		Shield, Splash				$ 22.16
20	W10429200		Retainer, Push-in		Appelez-nous	-
21	W10324647		Seal, Tub   (Replaces: W10580763)			Immediately	$ 84.15
