02 - Backguard
03 - Main Top
04 - Power Lock
05 - Lower Body
06 - Oven Door
07 - Rotisserie , Griddle
SELECT A DIAGRAM
New Model Search:

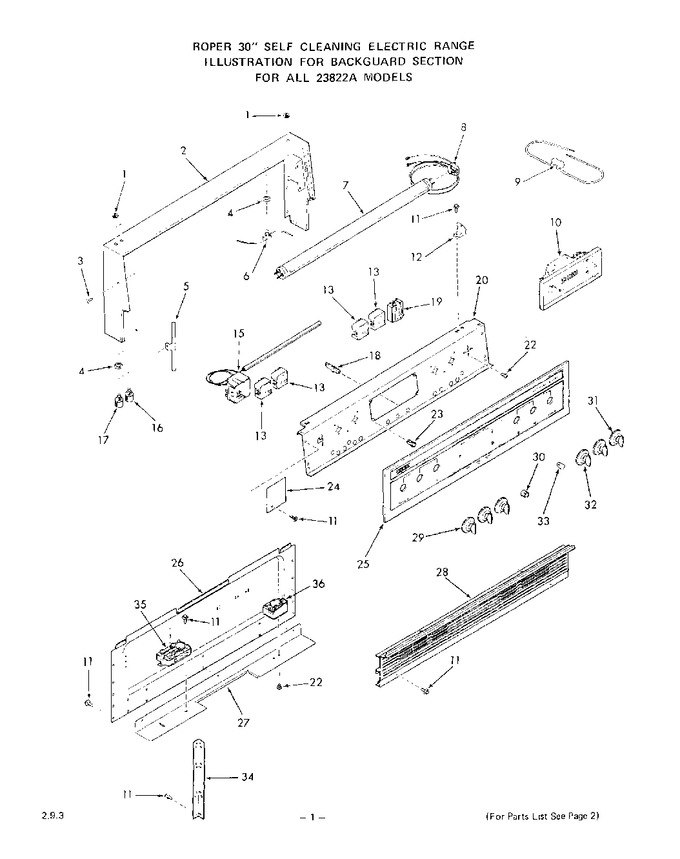

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 87403 | Knurled Nut |
|
- | |||||
| 2 | 301316 | Frame-backguard |
|
- | |||||
| 3 | 295268 | Screw 6-32x3/8`` |
|
- | |||||
| 4 | 236129 | Pal Nut |
|
- | |||||
| 5 | 299705 | End Trim- Top Lamp Glass (lt. Or Rt.) |
|
- | |||||
| 6 | 234416 | Push Switch (lock-unlock) |
|
- | |||||
| 7 | 71734 | Fluorescent Lamp (20 W - 24``) |
|
- | |||||
| 8 | 113745 | Holder-fluorescent Lamp (right) |
|
- | |||||
| 8 | 237316 | Holder-fluorescent Lamp (left) |
|
- | |||||
| 9 | 300326 | Wire Lead W/resistor (10k,4-5 Watt) |
|
- | |||||
| 10 | 307550 | Clock W/1 Hr. Timer |
|
- | |||||
| 11 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 12 | DD67-00074A | Bracket-fluorescent Lamp (rt. Or Lt.) (Replaces: 113236) |
|
Immediately | $ 1.66 | ||||
| 13 | 5500-200 | Infinite Control (Replaces: 320944) |
|
Immediately | $ 54.85 | ||||
| 15 | 324686 | Oven Thermostat |
|
- | |||||
| 16 | DE81-03691A | Push Switch-fluorescent Lamp (Replaces: 105386) |
|
$ 99.00 | |||||
| 17 | 283523 | Push Switch-oven Light |
|
- | |||||
| 18 | 296317 | Indicator Light-oven, Lock & Surface |
|
- | |||||
| 19 | 320835 | Selector Switch |
|
- | |||||
| 20 | 307690 | Control Panel |
|
- | |||||
| 22 | 78565 | Screw 8-32x3/16`` |
|
- | |||||
| 23 | 293577 | Tubular Clip (4 Required) |
|
- | |||||
| 24 | 301799 | Cover-switch Shield |
|
- | |||||
| 25 | 322322 | Top Lamp Glass |
|
- | |||||
| 26 | 302906 | Wire Cover-backguard |
|
- | |||||
| 27 | 323123 | Wire Cover Bottom |
|
- | |||||
| 28 | 313668 | Front-backguard Bottom |
|
- | |||||
| 29 | 322320 | Knob-oven Thermostat |
|
- | |||||
| 30 | 294810 | Knob-clock (1 Req) (minute Timer) |
|
- | |||||
| 31 | 322319 | Knob-selector Switch |
|
- | |||||
| 32 | 322318 | Knob-infinite Control (4 Required) |
|
- | |||||
| 33 | 109225 | Knob-clock (start & Stop Time) (2) |
|
- | |||||
| 34 | 319361 | Support-backguard (lt. Or Rt.) |
|
- | |||||
| 35 | 239802 | Oven Relay |
|
- | |||||
| 36 | 293428 | Fixed Input Control |
|
- |
