02 - Backguard
03 - Main Top
04 - Power Lock

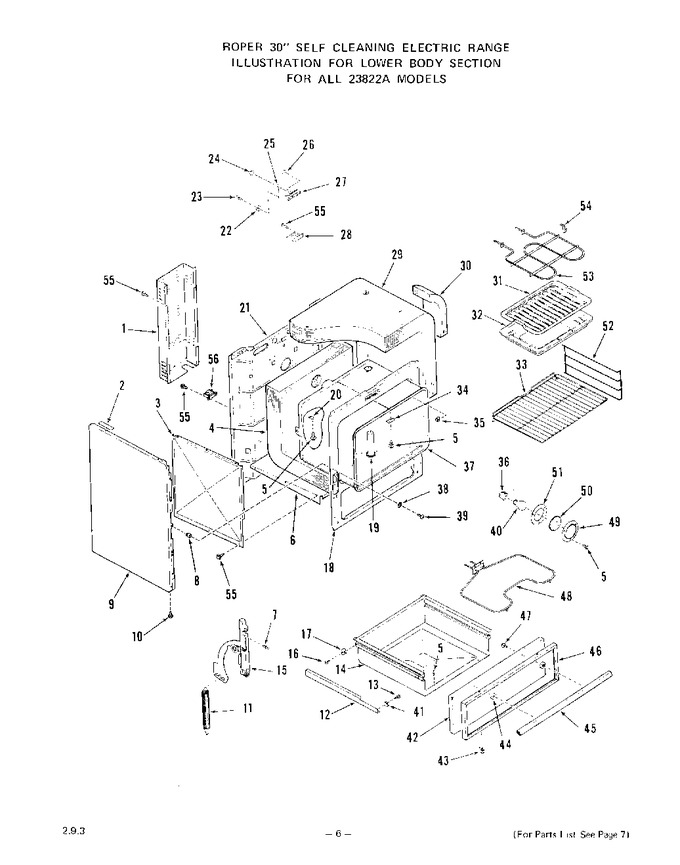

05 - Lower Body
06 - Oven Door
07 - Rotisserie , Griddle
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 296026 | Wire Cover |
|
- | |||||
| 2 | 303513 | Spacer-main Top (lt. Or Rt.) |
|
- | |||||
| 3 | 313284 | Retainer-insulation (lt. Or Rt.) |
|
- | |||||
| 4 | 308861 | Insulation-oven Bottom & Back |
|
- | |||||
| 5 | 316365 | Screw 10-32x7/16`` |
|
- | |||||
| 6 | 312517 | Lower Retainer-insulation |
|
- | |||||
| 7 | 112013 | Screw 10-32 X 5/8`` |
|
- | |||||
| 8 | 296006 | Grommet - Screw (8 Req.) |
|
- | |||||
| 9 | 323085 | Body Side (white-left) |
|
- | |||||
| 9 | 323087 | Body Side (coffee-left) |
|
- | |||||
| 9 | 323089 | Body Side (avocado-left) |
|
- | |||||
| 9 | 323091 | Body Side (golden Wheat-left) |
|
- | |||||
| 9 | 323093 | Body Side (almond-left) |
|
- | |||||
| 9 | 323084 | Body Side (white-right) |
|
- | |||||
| 9 | 323086 | Body Side (coffee-right) |
|
- | |||||
| 9 | 323088 | Body Side (avocado-right) |
|
- | |||||
| 9 | 323092 | Body Side (almond- Right) |
|
- | |||||
| 9 | 323090 | Body Side (golden Wheat-right) |
|
- | |||||
| 10 | 69065 | Leg Leveler |
|
- | |||||
| 11 | 308839 | Spring - Oven Door (lt. Or Rt.) |
|
- | |||||
| 12 | 311441 | Support-storage Drawer (lt. Or Rt.) |
|
- | |||||
| 13 | 295849 | Screw 10-32x17/32`` |
|
- | |||||
| 14 | 296150 | Storage Drawer |
|
- | |||||
| 15 | 303133 | Hinge-oven Door (left) |
|
- | |||||
| 15 | 303132 | Hinge - Oven Door (right) |
|
- | |||||
| 16 | DE81-02123A | Screw 8 - 32 X 3/8`` (Replaces: 102563) |
|
$ 1.66 | |||||
| 17 | 281913 | Slide Block-rear (lt. Or Rt.) |
|
- | |||||
| 18 | 324424 | Front Frame |
|
- | |||||
| 19 | 308822 | Vent Tube |
|
- | |||||
| 20 | 237762 | Cover Plate-thermostat Bulb |
|
- | |||||
| 21 | 322467 | Main Back |
|
- | |||||
| 22 | 299425 | Washer |
|
- | |||||
| 23 | 313191 | Screw 10-32x7/16`` |
|
- | |||||
| 24 | 453284 | G.m. Hex Nut 10-32 |
|
- | |||||
| 25 | 304987 | Ground Strap |
|
- | |||||
| 26 | 313190 | Screw 10-32x1`` |
|
- | |||||
| 27 | 290105 | Junction Block |
|
- | |||||
| 28 | 304272 | Range Service Mounting Plate |
|
- | |||||
| 29 | 308860 | Insulation-oven Top & Sides (1 Piece) |
|
- | |||||
| 30 | 303097 | Insulation-rt. Or Lt. |
|
- | |||||
| 31 | 319159 | Broiler Pan Grid |
|
- | |||||
| 32 | 319158 | Broiler Pan |
|
- | |||||
| 33 | 305346 | Oven Rack (2 Req) |
|
- | |||||
| 34 | 304835 | Cover |
|
- | |||||
| 35 | 238052 | Retainer-thermostat Bulb |
|
- | |||||
| 36 | 87883 | Holder-oven Lamp Bulb |
|
- | |||||
| 37 | 324423 | Oven Body |
|
- | |||||
| 38 | 303963 | Washer |
|
- | |||||
| 39 | WP303896 | Screw 8abx1`` (Replaces: 303896) |
|
Immediately | $ 66.12 | ||||
| 40 | DA96-01243C | Oven Lamp Bulb (Replaces: 111257) |
|
$ 144.00 | |||||
| 41 | 281914 | Slide Block-front (lt. Or Rt.) |
|
- | |||||
| 42 | 312467 | Front Panel-storage Drawer |
|
- | |||||
| 43 | 295268 | Screw 6-32x3/8`` |
|
- | |||||
| 44 | DE81-05147A | Spacer, Door Handle (Replaces: 107158) |
|
$ 205.79 | |||||
| 45 | 286357 | Handle |
|
- | |||||
| 46 | 312500 | Frame-storage Drawer |
|
- | |||||
| 47 | 102430 | Screw 10 - 32 X 1/2`` |
|
- | |||||
| 48 | 309359 | Bake Element |
|
- | |||||
| 49 | 229372 | Retainer-oven Light Lens |
|
- | |||||
| 50 | 114989 | Lens-oven Light |
|
- | |||||
| 51 | 229371 | Gasket-oven Light Lens |
|
- | |||||
| 52 | 323362 | Oven Rack Guide |
|
- | |||||
| 53 | 316185 | Broiler Element |
|
- | |||||
| 54 | 324808 | Support-broiler Element |
|
- | |||||
| 55 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 56 | 98186 | Ballast |
|
- |
