02 - Backguard

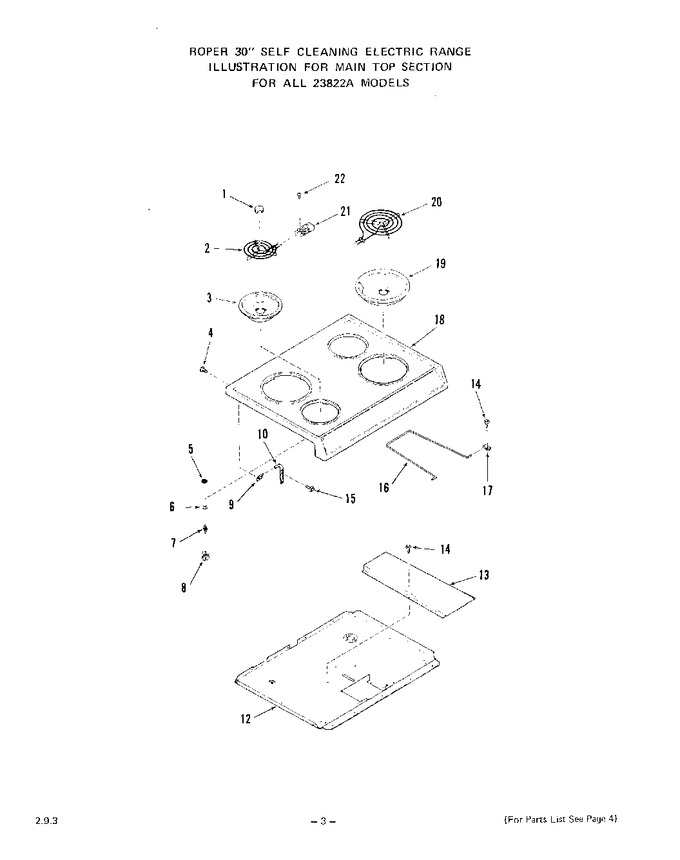

03 - Main Top
04 - Power Lock
05 - Lower Body
06 - Oven Door
07 - Rotisserie , Griddle
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318586 | Medallion (4 Required) |
|
- | |||||
| 2 | 321014 | 6`` Surface Element-lt. Front & Rt. Rear |
|
- | |||||
| 3 | WPW10196406 | 6`` Chrome Bowl-lt., Rt. Rear & Lt. Front (Replaces: 296481) |
|
Immediately | $ 12.05 | ||||
| 4 | 321337 | Screw 10-32x7/16`` |
|
- | |||||
| 5 | 239764 | Keps Nut 8-32 |
|
- | |||||
| 6 | 99279 | Washer |
|
- | |||||
| 7 | 299784 | Strike-main Top (lt. Or Rt.) |
|
- | |||||
| 8 | 71003 | Catch-main Top Strike |
|
- | |||||
| 9 | 320931 | Bracket-hinge (lt. Or Rt.) |
|
- | |||||
| 10 | 320921 | Hinge-main Top (right) |
|
- | |||||
| 10 | 320922 | Hinge-main Top (left) |
|
- | |||||
| 12 | 322102 | Burner Box Bottom |
|
- | |||||
| 13 | 308830 | Cover-lock Rod |
|
- | |||||
| 14 | 316365 | Screw 10-32x7/16`` |
|
- | |||||
| 15 | 321162 | Screw 10-32 X 3/4`` |
|
- | |||||
| 16 | 320725 | Support Rod-main Top |
|
- | |||||
| 17 | 285945 | Clip (2 Required) |
|
- | |||||
| 18 | 320960 | Main Top (white) |
|
- | |||||
| 18 | 320964 | Main Top (almond) |
|
- | |||||
| 18 | 320963 | Main Top (golden Wheat) |
|
- | |||||
| 18 | 320962 | Main Top (avocado) |
|
- | |||||
| 18 | 320961 | Main Top (coffee) |
|
- | |||||
| 19 | WPW10196405 | 8`` Burner Bowl-rt. Front & Lt. Rear (Replaces: 304969) |
|
Immediately | $ 15.56 | ||||
| 20 | 321012 | 8`` Surface Element-rt. Front & Lt. Rear |
|
- | |||||
| 21 | 304645 | Terminal Block W/wire Lead (4 Required) |
|
- | |||||
| 22 | 299632 | Screw 7-32x5/16`` |
|
- |
