02 - Backguard


03 - Main Top


04 - Power Lock


05 - Lower Body


06 - Oven Door


07 - Rotisserie , Griddle

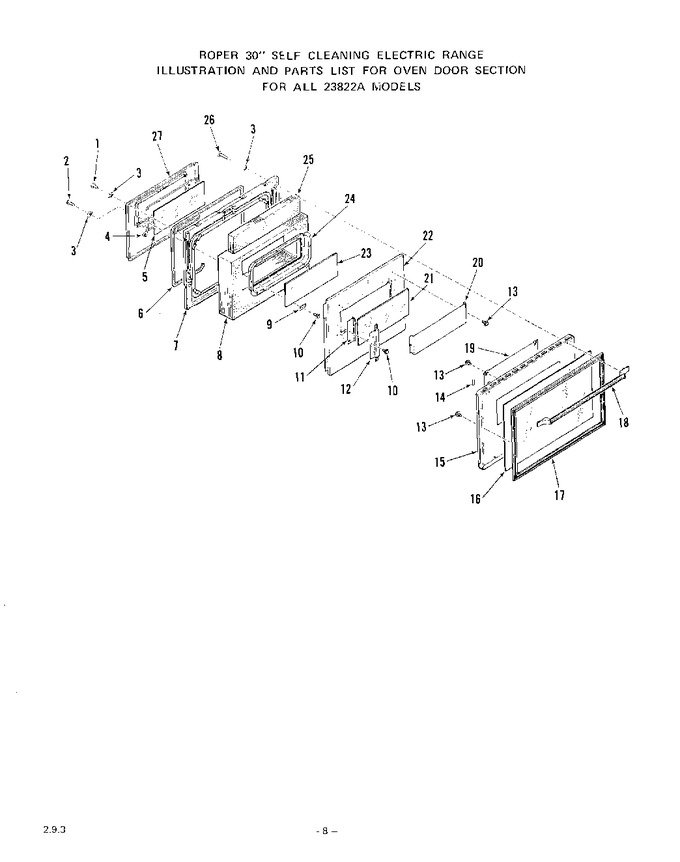

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	102376		Screw 10-32 X 1/2``		Appelez-nous	-
2	105799		Screw 10abx1		Appelez-nous	-
3	21067		Washer		Appelez-nous	-
4	303156		Seal-fiberglass		Appelez-nous	-
5	312426		Inner Glass-oven Door		Appelez-nous	-
6	292244		Gasket-oven Door		Appelez-nous	-
7	324425		Lining-oven Door		Appelez-nous	-
8	WP660532		Insulation-oven Door   (Replaces: 309191)			Immediately	$ 36.90
9	312888		Retainer-door Glass (4 Required)		Appelez-nous	-
10	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
11	307841		Spacer-oven Door Glass (lt. Or Rt.)		Appelez-nous	-
12	WP487353		Clamp-oven Door Glass (lt. Or Rt.)   (Replaces: 307842)				$ 6.81
13	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
14	112370		Cushion		Appelez-nous	-
15	321832		Front Panel-oven Door		Appelez-nous	-
16	319298		Outer Door Glass		Appelez-nous	-
17	321851		Frame-oven Door		Appelez-nous	-
18	282093		Handle-oven Door		Appelez-nous	-
19	314912		Shield-oven Door Lining		Appelez-nous	-
20	314910		Baffle-insulation Retainer		Appelez-nous	-
21	308239		Intermediate Glass-oven Door		Appelez-nous	-
22	314909		Retainer-oven Door Insulation		Appelez-nous	-
23	299921		Center Glass-oven Door		Appelez-nous	-
24	314352		Retainer-oven Door Glass		Appelez-nous	-
25	299930		Insulation-oven Door (top)		Appelez-nous	-
26	75740		Screw 10-24x2-1/2``		Appelez-nous	-
27	325002		Selector Switch		Appelez-nous	-
27	324427		Plug-oven Door Lining		Appelez-nous	-
27	322504		Main Top		Appelez-nous	-
27	325520		Controls		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
