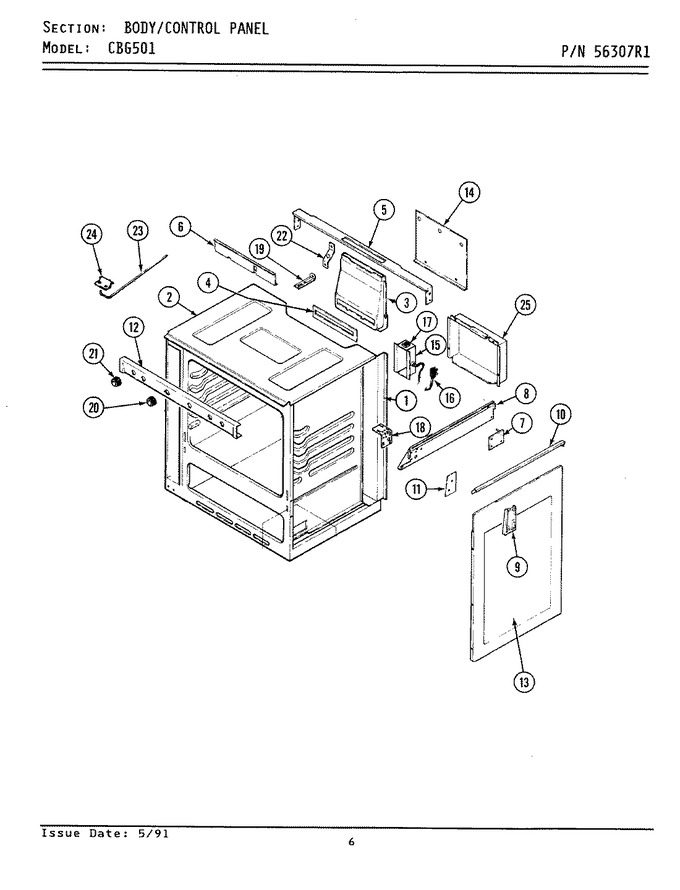

01 - Body/control Panel
02 - Control
03 - Control Panel
04 - Door/drawer
05 - Main Top
06 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 1 | 4002F064-80 | Back, Main | 00 |
|
- | ||||
| 2 | 4011F170-23 | Bottom, Burner Box | 00 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 3 | 4006W017-80 | Flue Assy. | 00 |
|
- | ||||
| 4 | 7201P006-60 | Gasket | 00 |
|
- | ||||
| 5 | 3802F038-70 | Brace Top Rear | 00 |
|
- | ||||
| 6 | 3604F130-51 | Sheild, Thermostat | 00 |
|
- | ||||
| 7 | 5720A009-34 | Hinge, Main Top L.h. | 00 |
|
- | ||||
| 7 | 5720A002-34 | Hinge, Main Top R.h. | 00 |
|
- | ||||
| 8 | 4016F002-80 | Side, Burner Box Right | 00 |
|
- | ||||
| 8 | 4016F006-80 | Side, Burner Box Left | 00 |
|
- | ||||
| 9 | 7720P055-60 | Trim, Left | 00 |
|
- | ||||
| 9 | 7720P058-60 | Trim, Right | 00 |
|
- | ||||
| 10 | 7720P056-60 | Trim | 00 |
|
- | ||||
| 10 | 7720P059-60 | Trim | 00 |
|
- | ||||
| 11 | 2610F001-32 | Trim | 00 |
|
- | ||||
| 11 | 2610F002-32 | Trim | 00 |
|
- | ||||
| 12 | 7712P031-60 | Trim, Manifold Panel | 00 |
|
- | ||||
| 12 | WP4159193 | Screw (Replaces: 7118P004-60) | 00 |
|
$ 4.29 | ||||
| 13 | 2618F075-71 | Panel, Side (white) | 00 |
|
- | ||||
| 13 | 7101P250-60 | Screw, Trim | 00 |
|
- | ||||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 14 | 3601F060-51 | Baffle | 00 |
|
- | ||||
| 15 | 4006F005-80 | Box, Disconnect | 00 |
|
- | ||||
| 16 | 8007P003-60 | Bushing, Snap | 00 |
|
- | ||||
| 16 | 7402P011-60 | Cord, Power | 00 |
|
- | ||||
| 17 | 7401P006-60 | Block, Disconnect | 00 |
|
- | ||||
| 18 | 3801F053-34 | Bracket | 00 |
|
- | ||||
| 19 | 3801F198-51 | Bracket, Tie-down | 00 |
|
- | ||||
| 20 | 7731P032-60 | Knob, Thermostat | 16 |
|
- | ||||
| 20 | 7711P399-60 | Knob, Oven Control | 10 |
|
- | ||||
| 20 | 7711P399-60 | Knob, Oven Control | 00 |
|
- | ||||
| 21 | 7733P052-60 | Knob, Valve | 10 |
|
- | ||||
| 21 | 7711P400-60 | Knob, Burner | 00 |
|
- | ||||
| 21 | 7733P076-60 | Knob, Valve | 16 |
|
- | ||||
| 22 | 3802F037-34 | Brace | 00 |
|
- | ||||
| 23 | 3807F226-34 | Prop, Main Top | 00 |
|
- | ||||
| 24 | 3805F002-34 | Clamp, Window Assy. | 00 |
|
- | ||||
| 25 | 4005F111-80 | Cover | 00 |
|
- | ||||
| 25 | 4005F352-80 | Cover, Transformer | 6 |
|
- | ||||
| 25 | 4005F316-80 | Cover | 04 |
|
- |
