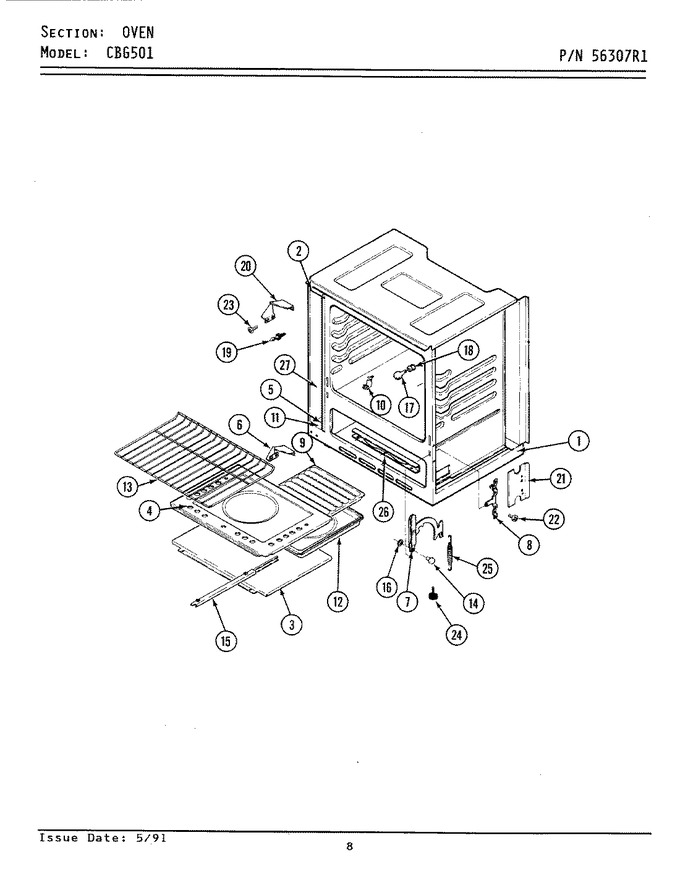

06 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7101P004-60 | Screw | 00 |
|
- | ||||
| 1 | 3802F012-80 | Brace, Base | 00 |
|
- | ||||
| 1 | 4003W002-80 | Base Assy. Range | 00 |
|
- | ||||
| 1 | 7103P004-60 | Nut, Base Mtg. | 00 |
|
- | ||||
| 2 | 3802F072-80 | Brace Compt. Top | 00 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 3 | 4011F145-51 | Bottom | 00 |
|
- | ||||
| 4 | 2205F017-19 | Bottom, Oven | 12 |
|
- | ||||
| 4 | 2205F017-23 | Bottom, Oven | 05 |
|
- | ||||
| 4 | 7002P009-60 | Insulation, Baffle | 00 |
|
- | ||||
| 4 | 2205F009-23 | Bottom, Oven | 00 |
|
- | ||||
| 4 | 3601F201-23 | Baffle | 00 |
|
- | ||||
| 5 | 4016F014-80 | Side, Oven Compartment | 00 |
|
- | ||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 6 | 7106P003-60 | Hinge | 00 |
|
- | ||||
| 7 | 3420A035-34 | Stop, Oven Door | 00 |
|
- | ||||
| 8 | 3418D076-34 | Hinge, Oven Door (rt) | 00 |
|
- | ||||
| 8 | 3418D075-34 | Hinge, Oven Door (lt) | 00 |
|
- | ||||
| 9 | 3413F015-23 | Insert, Broiler Pan | 05 |
|
- | ||||
| 9 | 4396923 | Tray, Broiler (Replaces: 3413F007-23) | 00 |
|
Immediately | $ 52.04 | |||
| 10 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 00 |
|
Immediately | $ 11.07 | |||
| 11 | 4011F131-80 | Bottom, Compartment | 00 |
|
- | ||||
| 11 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 12 | 3401F019-23 | Broiler Pan | 05 |
|
- | ||||
| 12 | 4396923 | Pan, Broiler (Replaces: 3401F010-23) | 00 |
|
Immediately | $ 52.04 | |||
| 13 | 7801P013-60 | Rack, Oven | 00 |
|
- | ||||
| 14 | 7113P002-60 | Pin, Hinge | 00 |
|
$ 9.05 | ||||
| 15 | 3404A014-51 | Track, Broiler Dwr Left | 00 |
|
- | ||||
| 15 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 15 | WP4159193 | Screw (Replaces: 7101P115-60) | 00 |
|
$ 4.29 | ||||
| 15 | 3404A013-51 | Track, Broiler Dwr Right | 00 |
|
- | ||||
| 16 | 7112P019-60 | Clip, Hinge Pin | 00 |
|
- | ||||
| 17 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 00 |
|
Immediately | $ 1.98 | |||
| 18 | 7408P001-60 | Recept, Oven Light | 00 |
|
- | ||||
| 19 | WP71002097 | Catch (Replaces: 8024P002-60) | 00 |
|
$ 11.12 | ||||
| 20 | 7106P007-60 | Hinge | 00 |
|
- | ||||
| 21 | 3609F003-61 | Guard, Hinge | 00 |
|
- | ||||
| 22 | WP4159193 | Screw (Replaces: 7101P112-60) | 00 |
|
$ 4.29 | ||||
| 23 | 7101P013-60 | Screw, Special | 00 |
|
- | ||||
| 24 | Y7101P25460 | Leg, Leveling | 00 |
|
- | ||||
| 25 | 7803P003-60 | Spring | 00 |
|
- | ||||
| 26 | 5720A010-23 | Support, Oven Bottom | 05 |
|
- | ||||
| 26 | 5720A002-23 | Support Assy, Oven Bottom | 00 |
|
- | ||||
| 27 | 7002P025-60 | Insulation, Rear | 00 |
|
- | ||||
| 27 | 3822F001-80 | Upright, Front Corner | 00 |
|
- | ||||
| 27 | 7002P122-60 | Insulation, Wrapper | 00 |
|
- |
