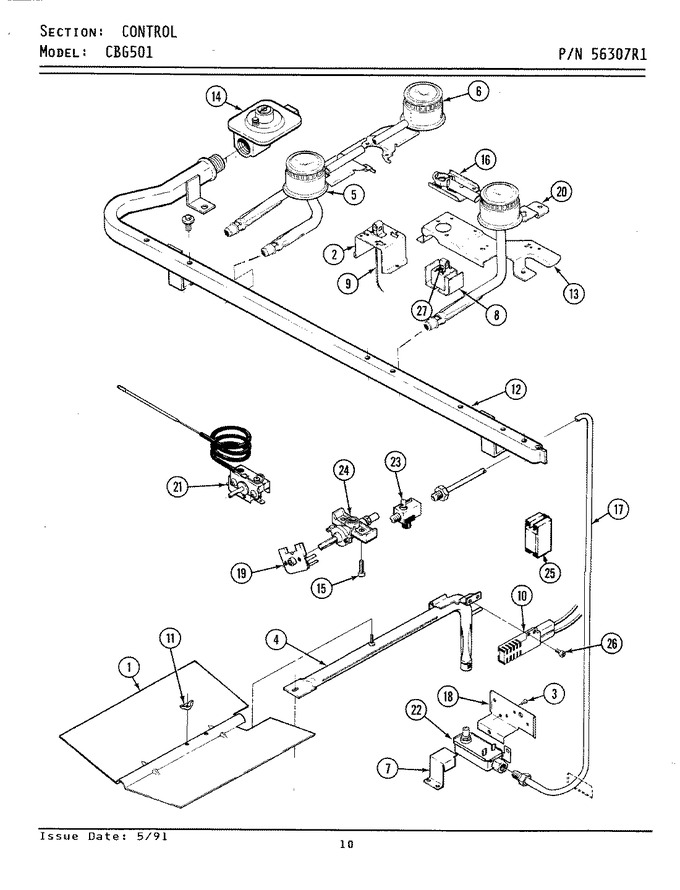

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body/control Panel
02 - Control
03 - Control Panel
04 - Door/drawer
05 - Main Top
06 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F101-45 | Baffle, Oven Burner | 00 |
|
- | ||||
| 2 | 3807F232-45 | Support, Ignitor | 00 |
|
- | ||||
| 3 | WP4159193 | Screw (Replaces: 7101P115-60) | 00 |
|
$ 4.29 | ||||
| 4 | 7505P065-60 | Burner, Oven | 00 |
|
- | ||||
| 5 | 7505P098-60 | Burner, Top Front----na | 00 |
|
- | ||||
| 6 | 7505P099-60 | Burner, Top Rear | 00 |
|
- | ||||
| 7 | 4005F173-51 | Cover, Valve Terminal | 00 |
|
- | ||||
| 8 | 3807F069-34 | Support | 00 |
|
- | ||||
| 9 | 7432P029-60 | Igniter, Top Burner (lt) | 00 |
|
- | ||||
| 10 | 12400035 | Igniter, Bake (Replaces: 7432P051-60K) | 00 |
|
Immediately | $ 60.44 | |||
| 10 | 12400035 | Igniter, Oven (Replaces: 7432P067-60) | 10 |
|
Immediately | $ 60.44 | |||
| 11 | 7103P030-60 | Nut, Wing | 00 |
|
$ 6.37 | ||||
| 12 | 7513P113-60 | Pipe, Manifold | 10 |
|
- | ||||
| 12 | 7513P053-60 | Pipe, Manifold | 00 |
|
- | ||||
| 12 | 7513P138-60 | Pipe, Manifold | 17 |
|
- | ||||
| 13 | 3807F230-34 | Support, Griddle Burner | 00 |
|
- | ||||
| 14 | 7510P002-60 | Regulator, Pressure | 00 |
|
- | ||||
| 15 | 7101P043-60 | Screw, Control Valve | 00 |
|
- | ||||
| 15 | 7101P296-60 | Screw | 10 |
|
- | ||||
| 16 | 7506P018-60 | Tube | 00 |
|
- | ||||
| 17 | 3414F051-44 | Tubing 3/8 X 56.5`` | 00 |
|
- | ||||
| 18 | 3807F124-34 | Support | 00 |
|
- | ||||
| 19 | 7403P285-60 | Switch, Igniter | 15 |
|
$ 54.75 | ||||
| 19 | WP7403P190-60 | Switch, Burner (Replaces: 7403P190-60) | 00 |
|
$ 118.82 | ||||
| 19 | 7403P216-60 | Switch, Top Burner | 10 |
|
- | ||||
| 19 | 7403P259-60 | Switch | 13 |
|
- | ||||
| 20 | 7505P102-60 | Burner - Griddle----na | 00 |
|
- | ||||
| 21 | 7101P279-60 | Screw W/washer | 00 |
|
- | ||||
| 21 | 7515P019-60 | + Thermostat, Oven | 00 |
|
- | ||||
| 21 | 7404P062-60 | Thermostat, Oven | 06 |
|
- | ||||
| 22 | 1555251 | Nut, Loxit (3/8``) | 00 |
|
- | ||||
| 22 | 7501P106-60 | Valve, Oven | 11 |
|
- | ||||
| 22 | 7501P015-60 | Valve, Oven (natural) | 00 |
|
- | ||||
| 23 | 7502P002-60 | Valve, Shut Off | 00 |
|
- | ||||
| 24 | 7502P138-60 | Valve Burner | 10 |
|
- | ||||
| 24 | 7502P047-60 | Valve, Burner | 00 |
|
- | ||||
| 25 | 7431P016-60 | Module, Spark | 04 |
|
- | ||||
| 25 | 7431P003-60 | Module, Spark | 00 |
|
- | ||||
| 25 | 12001596 | Module, Spark (Replaces: 7431P017-60) | 6 |
|
Immediately | $ 85.93 | |||
| 26 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 00 |
|
$ 4.29 | ||||
| 27 | 7432P015-60 | Igniter, Top Burner | 00 |
|
$ 53.77 |
