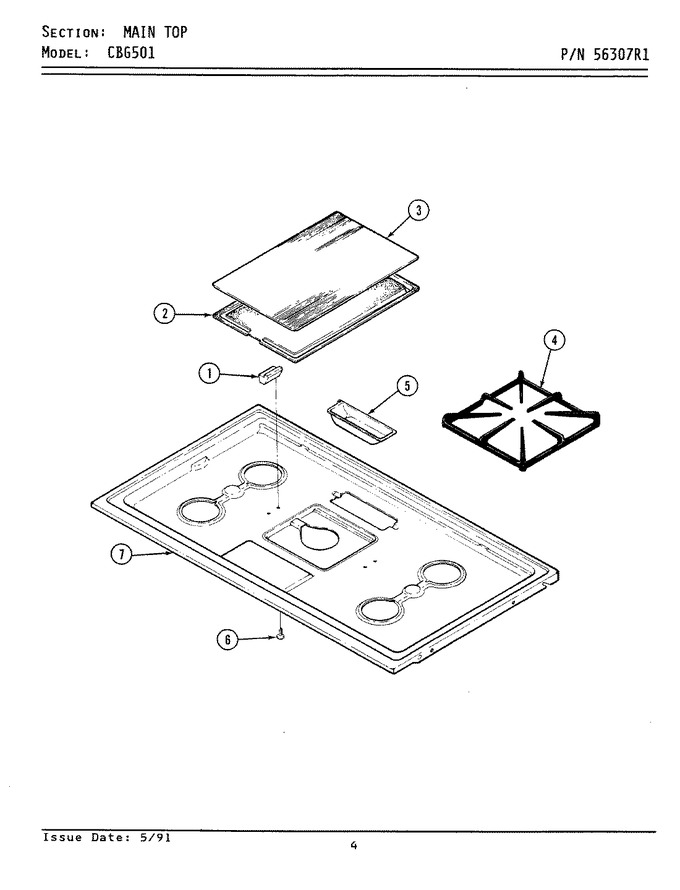

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8004P016-60 | Support, Grate | 00 |
|
- | ||||
| 2 | W10116823 | Kit, Griddle | 00 |
|
- | ||||
| 3 | 2005F002-30 | Cover, Griddle Stainless | 00 |
|
- | ||||
| 4 | 7518P001-60 | Grate - Burner | 00 |
|
- | ||||
| 4 | 2003F029-00 | Grate, Black | 09 |
|
- | ||||
| 5 | 3401F017-23 | Pan, Grease | 00 |
|
- | ||||
| 6 | 7101P006-60 | Screw, Bkgd Trim Bwn | 00 |
|
- | ||||
| 7 | 2001F045-84 | Top, Main Almond | 00 |
|
- | ||||
| 7 | 2001F045-81 | Top, Main White | 00 |
|
- |
