Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 313197 Wire Cover-controls (left) Appelez-nous -
2 314656 Baffle-wires Appelez-nous -
3 WP112432 Screw 10-32x7/16``   (Replaces: 311484) Special Order $ 7.16

4 313196 Wire Cover-controls (right) Appelez-nous -
5 314657 Insulation-controls (right) Appelez-nous -
6 66763 Wire Connector (2 Required) In-Stock Immediately $ 662.32

7 301666 2570b00 Appelez-nous -
7 5500-200 2570b10   (Replaces: 320944) In-Stock Immediately $ 54.85

8 5500-200 2570b10   (Replaces: 320944) In-Stock Immediately $ 54.85

8 301667 2570b00 Appelez-nous -
9 291268 2570b00 Appelez-nous -
9 320776 2570b10 Appelez-nous -
10 305928 Push Switch (lock-unlock) Appelez-nous -
11 314658 Insulation-controls (left) Appelez-nous -
12 298794 Push Switch-oven Light Appelez-nous -
13 236129 Pal Nut (1 Ea. For Keys 10 & 12) Appelez-nous -
14 320835 2570b10 Appelez-nous -
14 315608 2570b00 Appelez-nous -
15 108069 Speed Nut 10 - 32 Appelez-nous -
16 312942 Control Panel Appelez-nous -
18 288247 Indicator Light Appelez-nous -
19 316936 Wire Lead W/resistor Appelez-nous -
20 78565 Screw 8-32x3/16`` (2 Ea. For Keys 7, 8, 9 & 14 Appelez-nous -
21 233161 Lens-indicator Light Appelez-nous -
22 313987 2570b00 Appelez-nous -
22 321080 2570b10 Appelez-nous -
23 302446 2570b00 Appelez-nous -
23 321077 2570b10 Appelez-nous -
24 315400 Left Appelez-nous -
24 315398 Right Appelez-nous -
25 315578 Left Appelez-nous -
25 315579 Right Appelez-nous -
26 69014 Screw 10ax1/2`` Appelez-nous -
27 87403 Knurled Nut (1 Ea. For Keys 10 & 12) Appelez-nous -
28 321078 2570b10 Appelez-nous -
28 298555 2570b00 Appelez-nous -
29 318036 Clock W/1 Hr. Timer Appelez-nous -
30 109225 Knob-clock (start & Stop Time) (3) Appelez-nous -
31 316971 Cover-clock Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

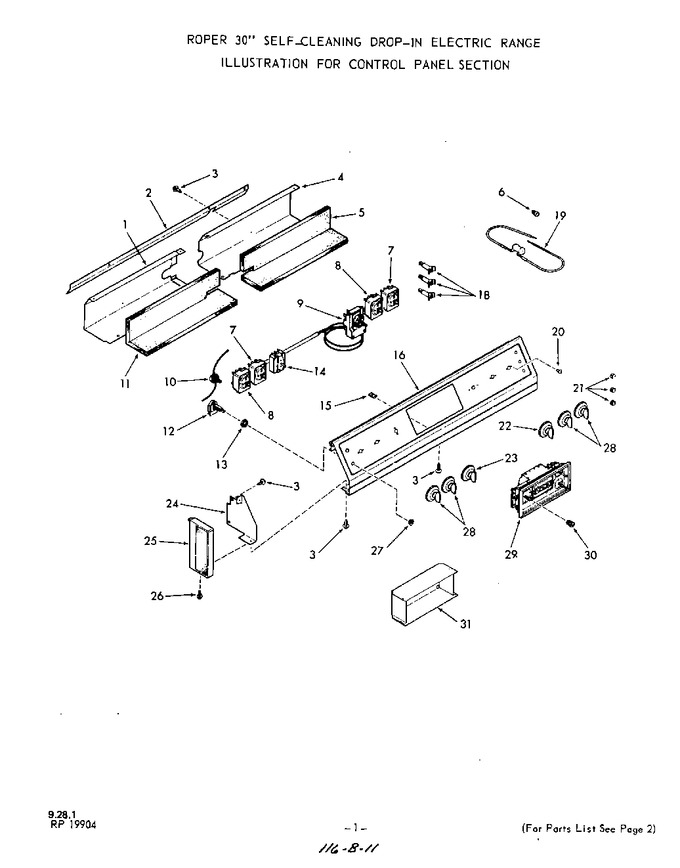

Diagram for 2570B00
