SELECT A DIAGRAM

01 - Control Panel


02 - Main Top


03 - Power Lock


04 - Body


05 - Oven Door , Lit/optional


06 - Griddle


07 - Model 2570b00

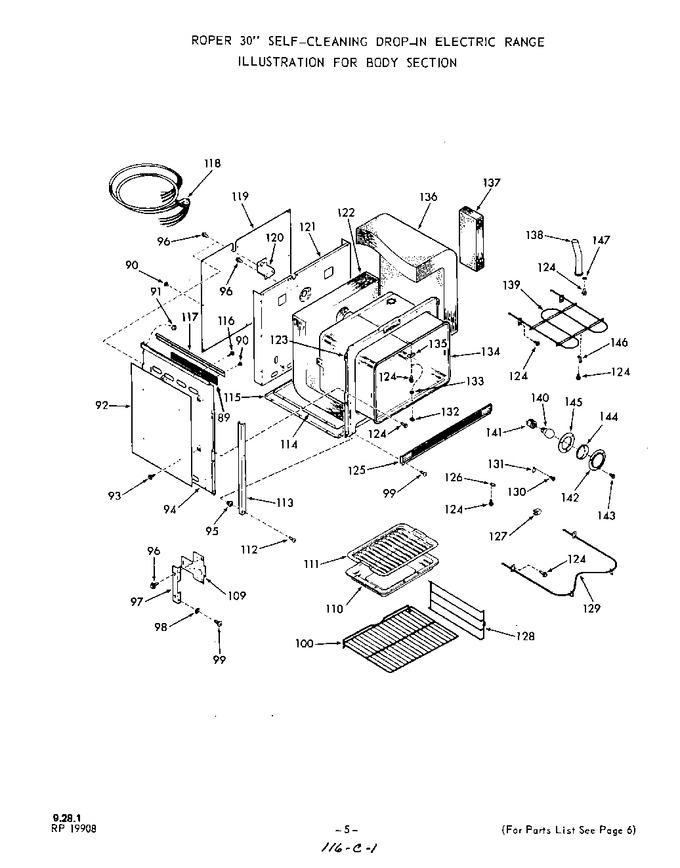

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
89	315805		Screen-burn. Box (lt. Or Rt.)		Appelez-nous	-
90	70588		Clip		Appelez-nous	-
91	235421		Pal Nut		Appelez-nous	-
92	304873		Baffle-lt. Or Rt.		Appelez-nous	-
93	295850		Screw 10 - 32 X 7/16``		Appelez-nous	-
94	312925		Right		Appelez-nous	-
94	312927		Left		Appelez-nous	-
95	330031		Expansion Nut Spacer   (Replaces: 312605)			Immediately	$ 14.48
96	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
97	313267		Hinge Angle-lt. Or Rt.		Appelez-nous	-
98	21067		Washer		Appelez-nous	-
99	315393		Screw 8abx5/8``		Appelez-nous	-
100	305346		Oven Rack (2 Req)		Appelez-nous	-
109	313266		Hinge Box - Lt. Or Rt.		Appelez-nous	-
110	282278		Broiler Pan		Appelez-nous	-
111	282273		Broiler Pan Grid		Appelez-nous	-
112	282634		Screw 8ab X 1/2``		Appelez-nous	-
113	306844		Left		Appelez-nous	-
113	306843		Right		Appelez-nous	-
114	304864		Insulation Retainer-oven Bottom		Appelez-nous	-
115	315477		Main Bottom		Appelez-nous	-
116	105953		Screw No.8 X 1``		Appelez-nous	-
117	316928		Trim - Burner Box Side (lt. Or Rt.)		Appelez-nous	-
118	313195		Harness-conduit Asm.		Appelez-nous	-
119	312945		Wire Cover		Appelez-nous	-
120	312987		Bracket-conduit Mounting		Appelez-nous	-
121	304842		Main Back		Appelez-nous	-
122	282635		Insulation-oven Back & Bottom		Appelez-nous	-
123	315482		Front Frame		Appelez-nous	-
124	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 174.11
125	315484		Bottom Trim-door		Appelez-nous	-
126	237762		Thermostat Bulb Plate		Appelez-nous	-
127	238052		Retainer-thermostat Bulb		Appelez-nous	-
128	305350		Oven Rack Guide-rt. Or Lt.		Appelez-nous	-
129	320421		Bake Element		Appelez-nous	-
130	289730		Screw 10 - 32 X 1/2``		Appelez-nous	-
131	229607		Cover Plate, Rotisserie		Appelez-nous	-
132	107956		Speed Nut 10-32		Appelez-nous	-
133	106462		Washer		Appelez-nous	-
134	314892		Oven Body		Appelez-nous	-
135	304835		Cover		Appelez-nous	-
136	282636		Insulation - Oven Top & Sides (1 Piece)		Appelez-nous	-
137	303097		Insulation-rt. Or Lt.		Appelez-nous	-
138	313765		Vent Tube		Appelez-nous	-
139	ET342		Broiler Element   (Replaces: 319526)				$ 49.95
140	DA96-01243C		Oven Lamp Bulb   (Replaces: 111257)				$ 144.00
141	87883		Holder-oven Lamp Bulb		Appelez-nous	-
142	229372		Retainer-oven Light Lens		Appelez-nous	-
143	102430		Screw 10 - 32 X 1/2``		Appelez-nous	-
144	114989		Oven Light Lens		Appelez-nous	-
145	229371		Gasket-lens		Appelez-nous	-
146	285840		Support-broiler Element		Appelez-nous	-
147	313189		Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
