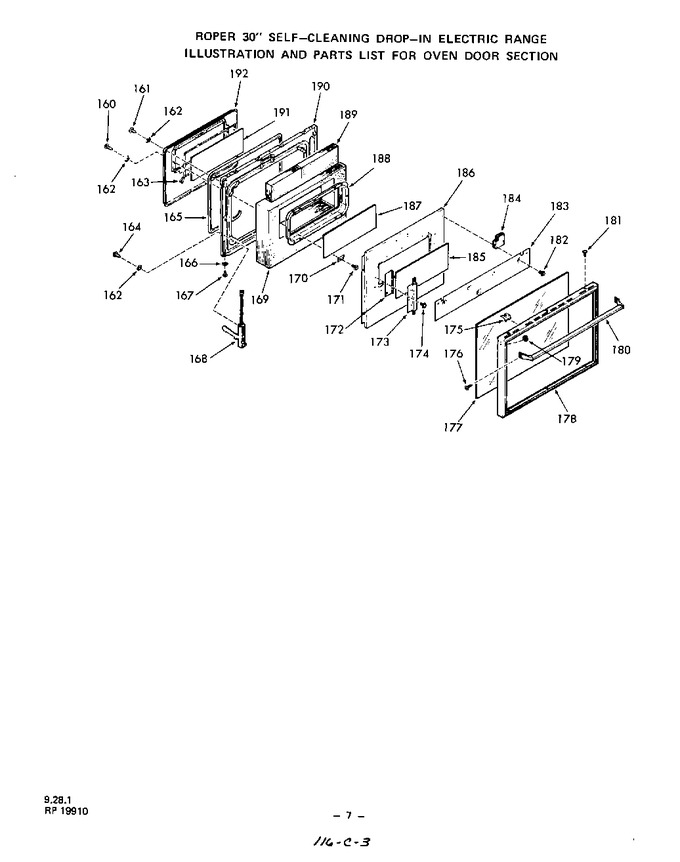

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
160	105799		Screw 10abx1		Appelez-nous	-
161	102376		Screw 10-32 X 1/2``		Appelez-nous	-
162	21067		Washer		Appelez-nous	-
163	302935		Asbestos Seal		Appelez-nous	-
164	239113		Screw 10-32x3/8``		Appelez-nous	-
165	292244		Gasket-oven Door		Appelez-nous	-
166	106462		Washer		Appelez-nous	-
167	286628		Screw 10-32x5/16``		Appelez-nous	-
168	313045		Hinge-lt. Or Rt.		Appelez-nous	-
169	WP660532		Insulation-oven Door   (Replaces: 309191)			Immediately	$ 36.90
170	312888		Retainer-door Glass (4 Required)		Appelez-nous	-
171	295849		Screw 10-32x17/32``		Appelez-nous	-
172	307841		Spacer-oven Door Glass (lt. Or Rt.)		Appelez-nous	-
173	WP487353		Clamp-oven Door Glass (lt. Or Rt.)   (Replaces: 307842)				$ 6.81
174	104520		Screw 10-32 X 17/32``		Appelez-nous	-
175	299596		Retainer-door Glass (6 Required) 2570b00		Appelez-nous	-
176	319447		Screw 8-32 X 1/2``		Appelez-nous	-
177	312951		2570b00		Appelez-nous	-
177	321354		2570b10		Appelez-nous	-
178	312948		Frame-door		Appelez-nous	-
179	239764		Keps Nut 8-32		Appelez-nous	-
180	318939		Handle-oven Door		Appelez-nous	-
181	112013		Screw 10-32x1/2``		Appelez-nous	-
182	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
183	321353		2570b10		Appelez-nous	-
183	315589		2570b00		Appelez-nous	-
184	303138		Insulation-top Corner (rt. Or Lt.) 2570b00		Appelez-nous	-
185	308239		Center Glass-oven Door		Appelez-nous	-
186	311695		2570b00		Appelez-nous	-
186	321351		2570b10		Appelez-nous	-
187	299921		2570b10		Appelez-nous	-
187	296214		2570b00		Appelez-nous	-
188	314352		Retainer-oven Door Glass		Appelez-nous	-
189	299930		Insulation-oven Door (top)		Appelez-nous	-
190	314895		Lining-oven Door		Appelez-nous	-
191	312426		Inner Glass-oven Door		Appelez-nous	-
192	312954		Controls		Appelez-nous	-
192	316938		Infinites-2570b00		Appelez-nous	-
192	321806		Infinites-2570b10		Appelez-nous	-
192	312953		Selector Switch		Appelez-nous	-
192	315055		Plug-oven Door Lining		Appelez-nous	-
