SELECT A DIAGRAM

01 - Control Panel


02 - Main Top


03 - Power Lock


04 - Body


05 - Oven Door , Lit/optional


06 - Griddle


07 - Model 2570b00

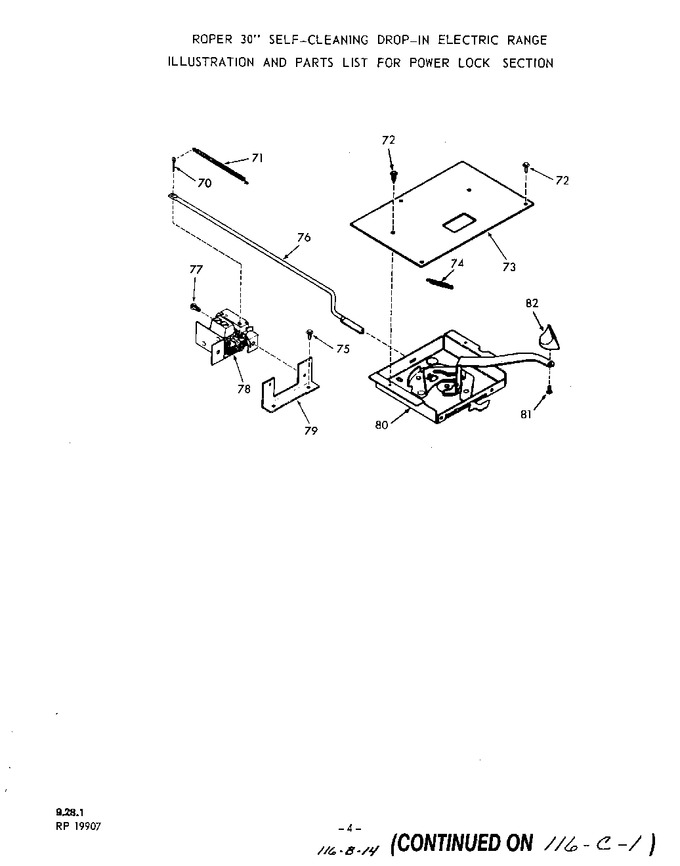

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
70	318089		Cotter Pin		Appelez-nous	-
71	299704		Spring-solenoid		Appelez-nous	-
72	295849		Screw 10-32x17/32``		Appelez-nous	-
73	306072		Lock Plate		Appelez-nous	-
74	299599		Spring-lock Handle		Appelez-nous	-
75	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
76	313088		Rod-oven Door Lock		Appelez-nous	-
77	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
78	314659		Solenoid W/switch		Appelez-nous	-
79	313076		Bracket-solenoid		Appelez-nous	-
80	305698		Oven Door Lock Box Asm. (inc. Key 74)		Appelez-nous	-
81	313768		Screw 6 - 32 X 17/32``		Appelez-nous	-
82	314843		Knob-oven Door Lock Handle		Appelez-nous	-
