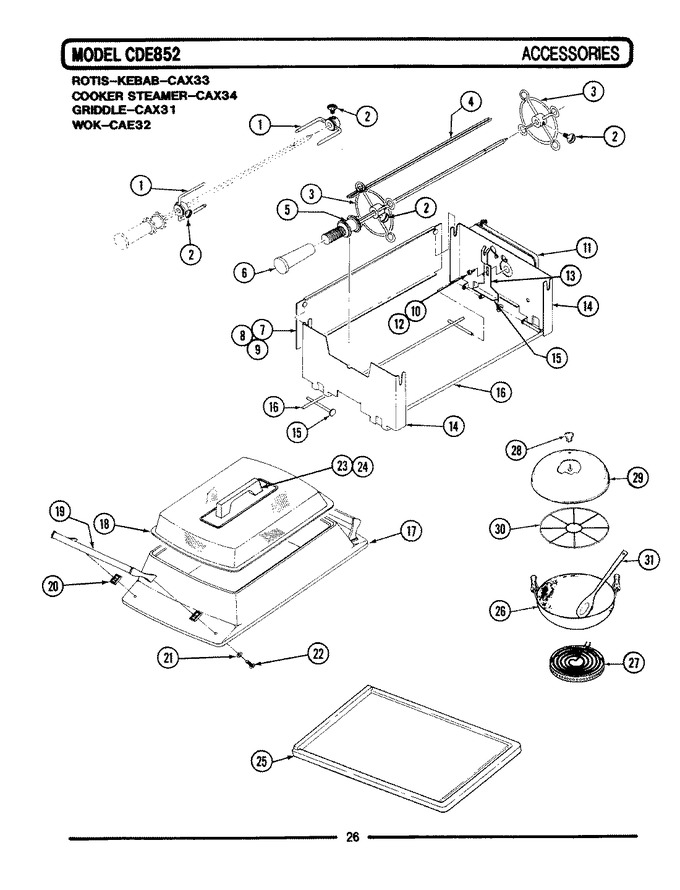

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y707540		Holder, Meat		Appelez-nous	-
2	Y701549		Screw, Thumb		Appelez-nous	-
3	Y701548		Ring, Locking		Appelez-nous	-
4	701552		Shish Skewer		Appelez-nous	-
5	701547		Spit		Appelez-nous	-
6	Y707539		Handle, Rotisserie		Appelez-nous	-
7	Y703825		Shield, Side		Appelez-nous	-
8	703822		Clip		Appelez-nous	-
9	Y700446		Washer				$ 5.27
10	71002058		Screw   (Replaces: Y702124)				$ 5.82
11	Y703827		Motor		Appelez-nous	-
12	703829		Nut, Shoulder		Appelez-nous	-
13	00703828		Lock, Spit   (Replaces: 703828)				$ 314.14
14	703826		Stand		Appelez-nous	-
15	701546		Retainer, Shaft		Appelez-nous	-
16	DE81-08273A		Wire Support   (Replaces: 701542)				$ 560.93
18	700859		Cover		Appelez-nous	-
19	700860		Handle		Appelez-nous	-
20	Y700861		Spacer Block		Appelez-nous	-
21	Y700862		Washer		Appelez-nous	-
22	WP3400074		Screw   (Replaces: 703004)				$ 6.47
23	Y712082		Handle		Appelez-nous	-
24	712067		Screw		Appelez-nous	-
25	703184		Griddle		Appelez-nous	-
25	Y705276		Griddle (silverstone Supra)		Appelez-nous	-
26	Y701984		Wok W/handles		Appelez-nous	-
27	704462		Element, Wok A141a		Appelez-nous	-
28	Y712163		Knob/screw		Appelez-nous	-
29	701987		Cover Assy.				$ 97.09
30	701988		Rack, Steamer		Appelez-nous	-
31	701989		Paddle, Rice		Appelez-nous	-
