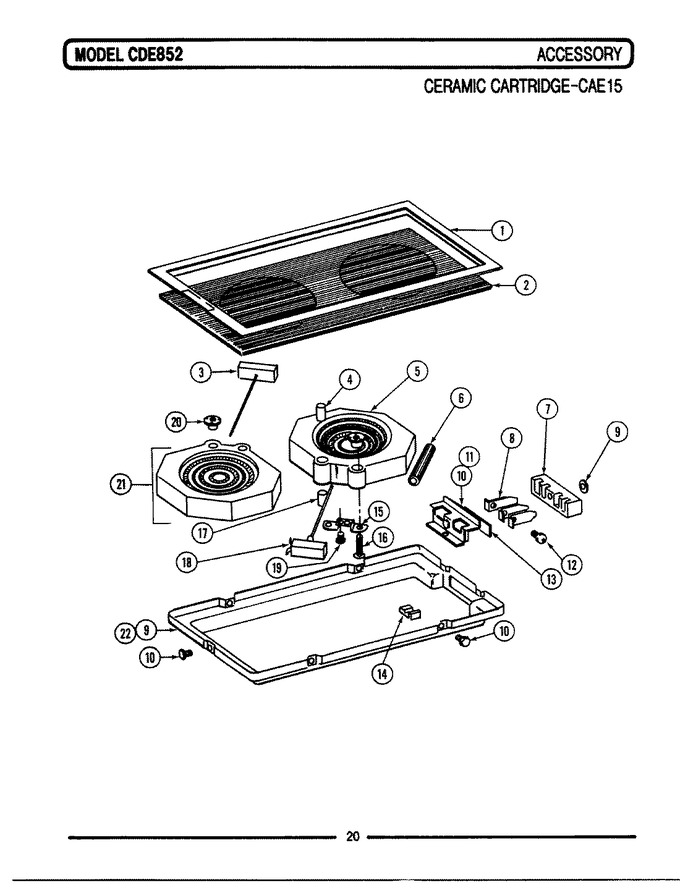

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y701533		Rim, Brushed		Appelez-nous	-
2	704640		Glass, Ceram (blk)		Appelez-nous	-
3	700952		Limiter, Large Block				$ 750.61
4	700948		Spacer		Appelez-nous	-
5	DE81-05731A		Small Element Block   (Replaces: 700954)				$ 387.11
5	Y700953		Small Element Block		Appelez-nous	-
6	700949		Cartridge Pan		Appelez-nous	-
7	WPY708730		Block, Terminal   (Replaces: Y708730)			Immediately	$ 87.44
8	Y708572		Spade, Contact			Immediately	$ 11.34
9	Y708862		Nut, Speed				$ 13.08
10	WP12990527		Screw   (Replaces: Y708955)			Immediately	$ 7.15
11	Y700648		Bracket, Retaining Assy.		Appelez-nous	-
12	WP488234		Screw   (Replaces: 708861)				$ 6.07
13	708834		Insulator, Contact Spade				$ 13.49
14	Y708910		Clip		Appelez-nous	-
15	DE81-05729A		Limiter Mounting Bracket   (Replaces: 700951)				$ 404.51
16	700646		Screw		Appelez-nous	-
17	700948		Spacer		Appelez-nous	-
18	700955		Limiter, Small Block		Appelez-nous	-
19	WP74004005		Screw   (Replaces: Y708359)				$ 6.95
20	700947		T-nut		Appelez-nous	-
21	Y700645		Wire		Appelez-nous	-
21	700643		Wire		Appelez-nous	-
21	700644		Wire, Cream		Appelez-nous	-
21	700946		Large Element Block		Appelez-nous	-
21	Y700945		Large Element Block		Appelez-nous	-
22	703349		Pan, Cartridge		Appelez-nous	-
