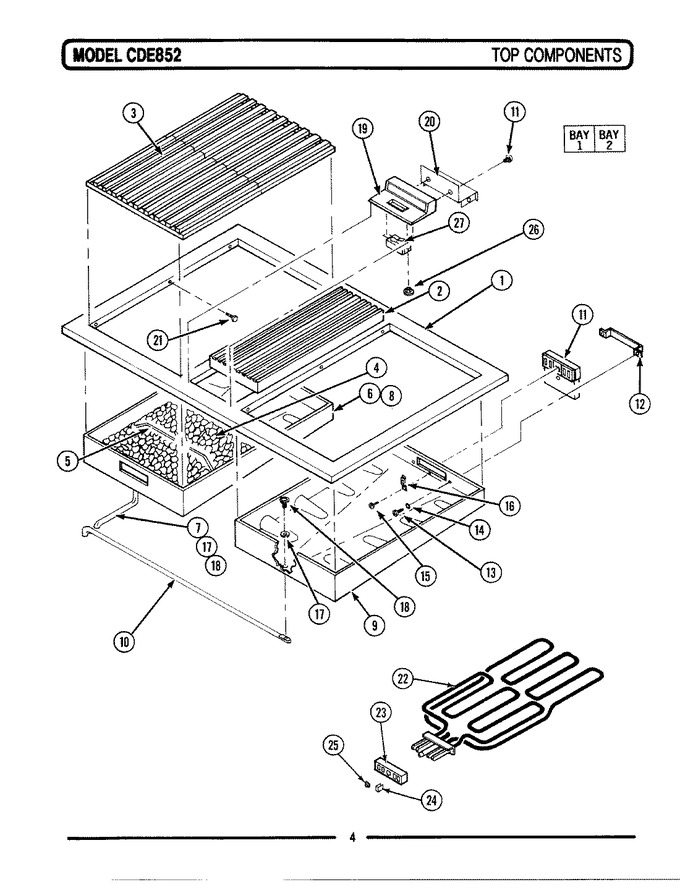

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701853		Top		Appelez-nous	-
2	702568		Grill, Air		Appelez-nous	-
3	707886		Grate		Appelez-nous	-
4	708929		Plate, Rock		Appelez-nous	-
5	700819		Support, Rock Plate				$ 71.81
6	Y712197		Wire, Brown		Appelez-nous	-
6	Y712203		Wire, Violet		Appelez-nous	-
6	701955		Pan, Grill (lt)		Appelez-nous	-
6	Y712200		Wire, Yellow		Appelez-nous	-
6	Y712227		Wire, Blue		Appelez-nous	-
7	Y702463		Tube, Drain (left)		Appelez-nous	-
8	WPY702434		Receptacle (ceramic)   (Replaces: Y702434)			Immediately	$ 96.61
9	Y701956		Pan, Grill (rt)		Appelez-nous	-
10	Y702327		Tube, Drain (right)		Appelez-nous	-
11	703003		Screw		Appelez-nous	-
12	Y702698		Bracket		Appelez-nous	-
13	WP59002061		Screw   (Replaces: Y707172)				$ 6.98
14	Y707664		Washer		Appelez-nous	-
15	WP489128		Screw   (Replaces: Y707341)				$ 9.79
16	74004835		Clip   (Replaces: Y702699)				$ 11.37
17	702747		Washer, Teflon		Appelez-nous	-
18	702748		Nut, Drain Tube		Appelez-nous	-
19	705095		Escutcheon, Air Grill		Appelez-nous	-
20	702581		Bracket, Filler		Appelez-nous	-
21	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 12.62
22	Y700532		Energy Saver 208v		Appelez-nous	-
22	WP5700M426-60		Element, Grill   (Replaces: Y700452)				$ 382.26
23	WPY708730		Block, Terminal   (Replaces: Y708730)			Immediately	$ 87.44
24	Y700450		Clip, Shunt				$ 9.51
25	Y708862		Nut, Speed				$ 13.08
26	Y705023		Palnut		Appelez-nous	-
27	Y705094		Switch, Fan		Appelez-nous	-
