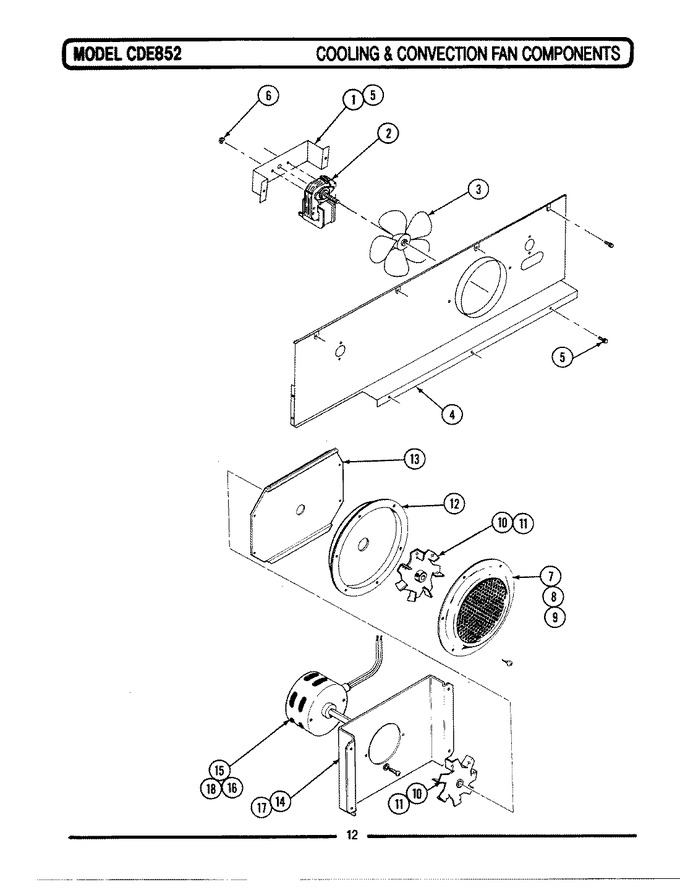

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y702542		Bracket, Mounting Motor		Appelez-nous	-
2	Y702549		Motor, Fan		Appelez-nous	-
3	Y702525		Blade, Fan		Appelez-nous	-
4	Y702345		Plate, Back		Appelez-nous	-
5	WP90767		Screw   (Replaces: 715773)			Immediately	$ 7.04
6	703648		Harness, Backsplash		Appelez-nous	-
6	M0282005		Nut, Hex   (Replaces: 701719)				$ 7.07
7	701707		Plate, Convection Front		Appelez-nous	-
8	WP1163283		Screw   (Replaces: Y703741)				$ 6.47
9	WP74003976		Washer   (Replaces: 702592)				$ 6.47
10	701711		Wheel, Convection		Appelez-nous	-
11	701709		Screw, Set		Appelez-nous	-
12	DE81-03744A		Plate, Convection Back   (Replaces: 701712)				$ 312.62
13	DE81-03745A		Cover, Motor Front   (Replaces: 701713)				$ 251.40
14	Y700601		Plate, Motor Mount		Appelez-nous	-
15	Y703035		Motor, Convect		Appelez-nous	-
16	WP488234		Screw   (Replaces: 708861)				$ 6.07
17	WP12990527		Screw   (Replaces: Y708955)			Immediately	$ 7.15
18	715910		Washer, Lock		Appelez-nous	-
