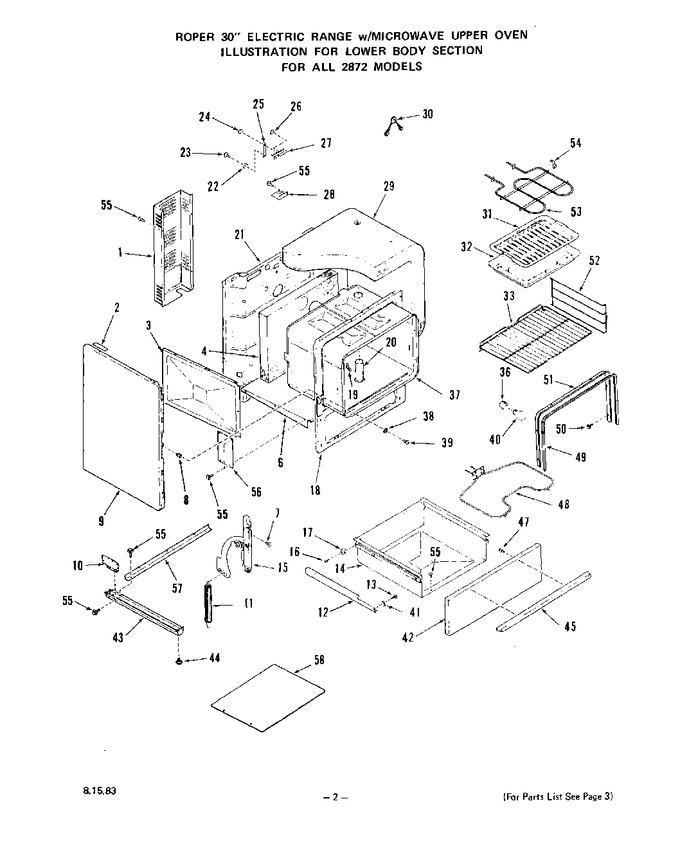

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 296026 | Wire Shield |
|
- | |||||
| 2 | 303513 | Spacer-main Top (lt. Or Rt.) |
|
- | |||||
| 3 | 324188 | Retainer-insulation (lt. Or Rt.) |
|
- | |||||
| 4 | 296140 | Insulation - Oven Back |
|
- | |||||
| 6 | 312517 | Lower Retainer-insulation |
|
- | |||||
| 7 | 112013 | Screw 10-32 X 5/8`` |
|
- | |||||
| 8 | 296006 | Grommet - Screw (8 Req.) |
|
- | |||||
| 9 | 323940 | Body Side (lt. Or Rt.) (avocado) |
|
- | |||||
| 9 | 323941 | Body Side-lt. Or Rt.) (golden Wheat) |
|
- | |||||
| 9 | 323938 | Body Side-lt. Or Rt.) (white) |
|
- | |||||
| 9 | 323939 | Body Side (lt. Or Rt.) (coffee) |
|
- | |||||
| 9 | 323942 | Body Side-lt. Or Rt.) (almond) |
|
- | |||||
| 10 | 324212 | Bracket-support & Base (lt. Or Rt.) |
|
- | |||||
| 11 | 296170 | Spring-oven Door (lt. Or Rt.) |
|
- | |||||
| 12 | 311441 | Support-storage Drawer (lt. Or Rt.) |
|
- | |||||
| 13 | 295849 | Screw 10-32x17/32`` |
|
- | |||||
| 14 | 296150 | Storage Drawer |
|
- | |||||
| 15 | 303133 | Hinge-oven Door (left) |
|
- | |||||
| 15 | 303132 | Hinge - Oven Door (right) |
|
- | |||||
| 16 | DE81-02123A | Screw 8 - 32 X 3/8`` (Replaces: 102563) |
|
$ 1.66 | |||||
| 17 | 281913 | Slide Block-rear (lt. Or Rt.) |
|
- | |||||
| 18 | 323800 | Front Frame |
|
- | |||||
| 19 | 115533 | Thermostat Bulb Clip (2 Req) |
|
- | |||||
| 20 | 296167 | Vent Tube |
|
- | |||||
| 21 | 323921 | Main Back |
|
- | |||||
| 22 | 299425 | Washer |
|
- | |||||
| 23 | 313191 | Screw 10-32x7/16`` |
|
- | |||||
| 24 | 97816 | Hex Nut 10-32 |
|
- | |||||
| 25 | 304987 | Ground Strap |
|
- | |||||
| 26 | 313190 | Screw 10-32x1`` |
|
- | |||||
| 27 | 290105 | Junction Block |
|
- | |||||
| 28 | 281903 | Range Service Mounting Plate |
|
- | |||||
| 29 | 296138 | Insulation-oven Top & Sided (1 Piece) |
|
- | |||||
| 30 | 324378 | Varistor |
|
- | |||||
| 31 | 291398 | Broiler Pan Grid |
|
- | |||||
| 32 | 297397 | Broiler Pan |
|
- | |||||
| 33 | 305408 | Oven Rack (2 Req) |
|
- | |||||
| 36 | 87883 | Holder-oven Lamp |
|
- | |||||
| 37 | 324900 | Oven Body |
|
- | |||||
| 38 | 303963 | Washer |
|
- | |||||
| 39 | WP303896 | Screw 8abx1`` (Replaces: 303896) |
|
Immediately | $ 66.12 | ||||
| 40 | DA96-01243C | Oven Lamp Bulb (Replaces: 111257) |
|
$ 144.00 | |||||
| 41 | 281914 | Slide Block-front (lt. Or Rt.) |
|
- | |||||
| 42 | 309042 | Front Panel-service Drawer (coffee) |
|
- | |||||
| 42 | 309044 | Front Panel-service Drawer (golden Wheat) |
|
- | |||||
| 42 | WP912618 | Front Panel-storage Drawer (almond) (Replaces: 308541) |
|
$ 6.98 | |||||
| 42 | 309043 | Front Panel-service Drawer (avocado) |
|
- | |||||
| 42 | 307750 | Front Panel-storage Drawer (white) |
|
- | |||||
| 43 | 323929 | Base W/levelers (lt Or Rt) |
|
- | |||||
| 44 | 69065 | Leg Leveler |
|
- | |||||
| 45 | 286357 | Handle |
|
- | |||||
| 47 | 295850 | Screw 10 - 32 X 7/16`` |
|
- | |||||
| 48 | 301444 | Bake Element |
|
- | |||||
| 49 | 296102 | Seal - Oven Door |
|
- | |||||
| 50 | DE81-07393A | Screw 10 - 32 X 17/32`` (Replaces: 102428) |
|
$ 174.11 | |||||
| 51 | 296103 | Retainer - Oven Door Seal |
|
- | |||||
| 52 | 305409 | Oven Rack Guide-rt. Or Lt. |
|
- | |||||
| 53 | 319487 | Broiler Element |
|
- | |||||
| 54 | 324808 | Support-broiler Element |
|
- | |||||
| 55 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 56 | 324305 | Shield-hinge (lt. Or Rt.) |
|
- | |||||
| 57 | 323931 | Strap - Main Back & Base |
|
- | |||||
| 58 | 319163 | Oven Bottom Liner |
|
- |
