Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 780015 Screw, Truss Hd. Tapping, 4 X 8 Mm, Z1-2 Appelez-nous -
2 780048 Wire Clip Appelez-nous -
3 780062 Screw, Truss Hd. Tapping, 4 X 10 Mm, Z1-1 Appelez-nous -
4 780564 Stay, Cavity Frame Appelez-nous -
6 780565 Oven Cavity (also Order Ill. No. 5 Caution Label And One Circuit Diagram When Replacing Oven Cavity. Appelez-nous -
7 780021 Special Washer, Temperature Probe Jack Appelez-nous -
8 780022 Special Nut, Temperature Probe Jack Appelez-nous -
9 780023 Jack, Temperature Probe Appelez-nous -
10 780566 5-wire Harness With Socket Appelez-nous -
11 780025 Temperature Probe Appelez-nous -
12 780527 Cavity Frame Appelez-nous -
13 780026 Plastic Stopper, Glass Tray Appelez-nous -
14 780027 Plastic Stopper Appelez-nous -
15 780528 Ferrite Rubber Xxx Appelez-nous -
16 780529 Trim Bracket Xxx Appelez-nous -
17 780032 Glass Tray Appelez-nous -
18 780029 Stirrer Cover Appelez-nous -
19 780530 Hinge, Lower Xxx Appelez-nous -
20 780486 Bolt, Hex Hd. With Phillips Slot, 5 X 12 Mm Z1 Appelez-nous -
21 780036 Nut, Hex. Hd., 8 Mm, Z1-1 Appelez-nous -
22 780037 Special Washer Appelez-nous -
23 780038 Collar, Stirrer Shaft Appelez-nous -
24 780039 Stirrer Fan Ass`y Appelez-nous -
25 780040 Stirrer Shaft Appelez-nous -
26 780041 Washer, 5 Mm U Appelez-nous -
27 W10439651 Air Guide, Stirrer, Right   (Replaces: 780043) Special Order $ 294.17

28 780044 Air Guide, Stirrer, Left Appelez-nous -
29 780220 Screw, Pan Hd. Tapping, 3 X 8 Mm, Z1-2 Appelez-nous -
30 780042 Nut, Hex Hd. With Washer, 5 Mm, Z1 Appelez-nous -
31 780045 Lamp Socket (ul Listed) Appelez-nous -
32 780047 Lamp, 120v 30w Appelez-nous -
33 780531 Bracket, Lamp Socket Appelez-nous -
34 326799 Cook Book Appelez-nous -
34 780050 Light Opening Cover Appelez-nous -

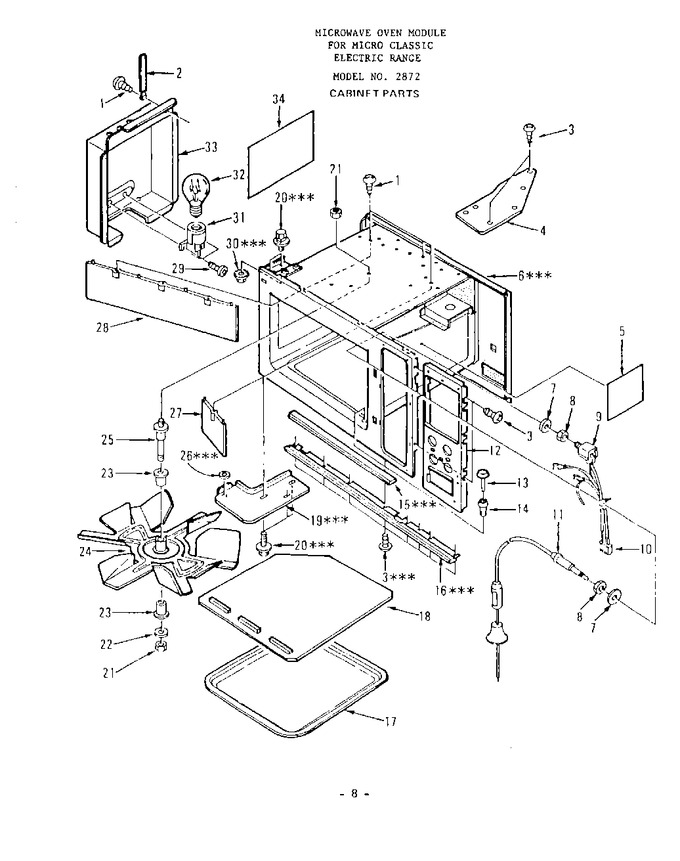

    View Diagram in Separate Window     Print Icon   Print Part List
