Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 780052 Insulator, Oven Cavity Appelez-nous -
2 780042 Nut, Hex Hd. With Washer, 5 Mm, Z1 Appelez-nous -
3 780053 Blower Assembly Appelez-nous -
4 780062 Screw, Truss Hd. Tapping, 4 X 10 Mm, Z1-1 Appelez-nous -
5 780054 Duct, Intake Appelez-nous -
6 780229 Magnetron, 2m-172jb1 Xxx (includes Ill. No.7) Appelez-nous -
7 780523 Magnetron Gasket Xxx Appelez-nous -
8 780057 Duct, Exhaust Appelez-nous -
9 780058 Thermostat, Magnetron Appelez-nous -
10 780059 Screw, Pan Hd. Tapping, 3 X 6 Mm, Z1-1 Appelez-nous -
11 780060 Screw, Truss Hd. Tapping, 4 X 14 Mm, Z1-1 Special Order $ 73.75

12 780061 Stay, Cavity And Magnetron Appelez-nous -
13 780048 Wire Clip Appelez-nous -
14 780016 Lockwasher, External Tooth, 4 Mm, U Appelez-nous -
15 780070 Nut, Hex Hd. With Washer, 3 Mm, Z1 Appelez-nous -
16 780533 Heat Sink Appelez-nous -
17 780079 Triac Appelez-nous -
18 780082 Screw, Pan Hd. Machine With Spring Washer, 3 X 8 Mm, Z1 Appelez-nous -
19 780080 Polyester Film Capacitor, 0.1 Mfd +/- 20 Percent, 50v Appelez-nous -
20 780567 Connector, Triac Appelez-nous -
21 780063 Screw, Pan Hd. Machine With Spring Washer, 3 X 30mm, Z1 Appelez-nous -
22 780064 Micro Switch, Door Sensing Appelez-nous -
23 780065 Insulation Sheet, Micro Switch Appelez-nous -
24 780066 Micro Switch, 1st And 2nd Interlock Appelez-nous -
25 780067 Screw, Pan Hd. Tapping, 3 X 16 Mm, Z1-1 Xxx Appelez-nous -
26 780068 Micro Switch, Interlock Monitor Xxx Appelez-nous -
27 780535 Lever Stopper Appelez-nous -
28 780536 Latch Lever Appelez-nous -
29 780072 Screw, Pan Hd. Machine With Washer And Spring Washer, 4 X 12 Mm, Z1 Appelez-nous -
30 780325 Screw, Pan Hd. Machine With Spring Washer, 3 X 20 Mm, Z1xxx Appelez-nous -
31 780069 Lever Stopper Appelez-nous -
32 780071 Latch Lever Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

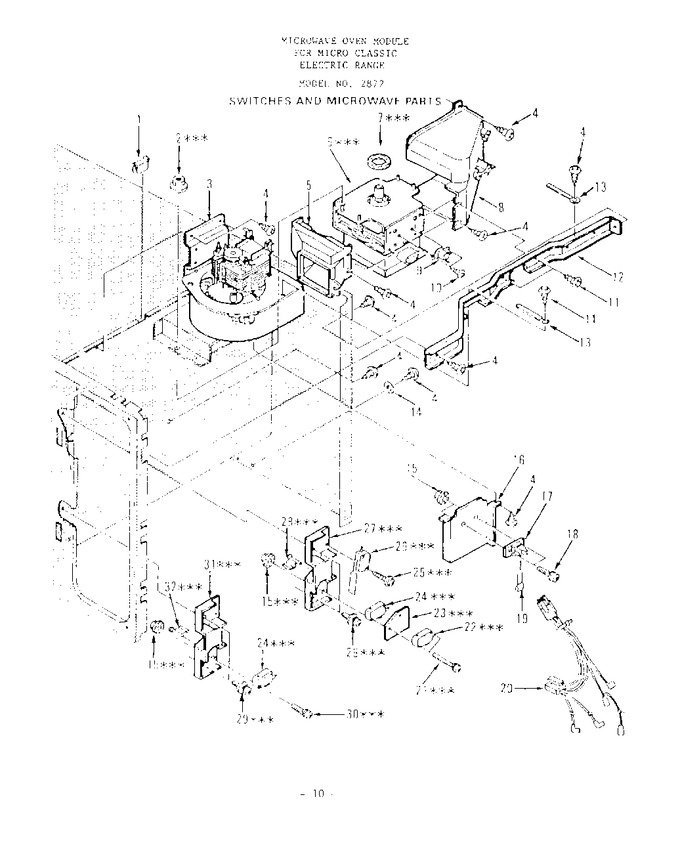

Diagram for 2872W0A
