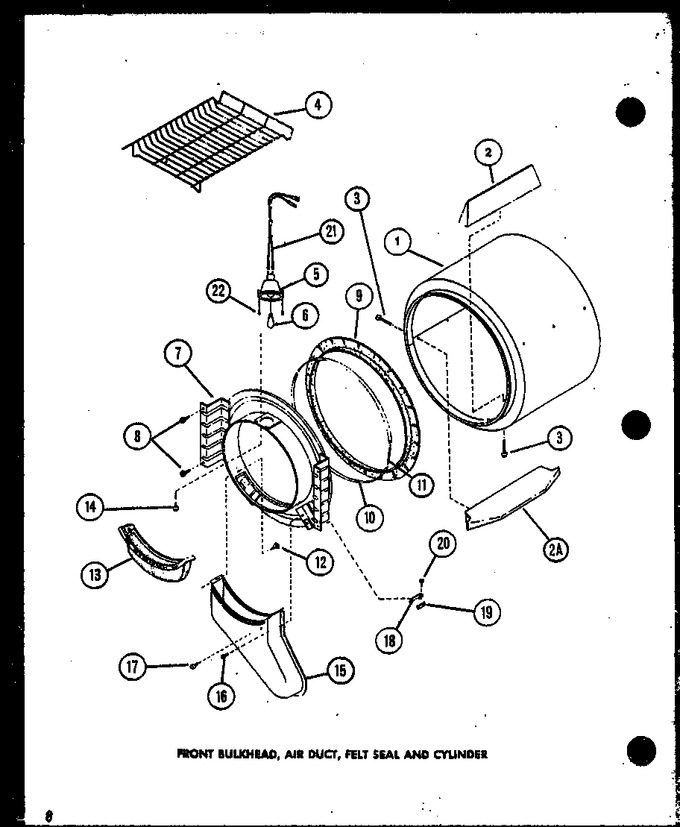

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61073P		Assy,cylinder-white		Appelez-nous	-
2	Y61399		Baffle,cylinder-short-		Appelez-nous	-
2	Y61027		Baffle,cylinder-extend		Appelez-nous	-
3	56131		Screw,10bt X 1 Tapping		Appelez-nous	-
4	58846		Rack,drying		Appelez-nous	-
5	60953		Receptacle, Bulb				$ 34.89
6	W10857122		Light, Cylinder   (Replaces: Y60954)				$ 12.45
7	62142W		Assy,bulkhead-front-sv		Appelez-nous	-
8	26592		Hex Head Screw		Appelez-nous	-
9	WP56088		Assy,seal   (Replaces: 56088)				$ 31.10
10	Y56090		Seal Strap		Appelez-nous	-
11	52310		Spring				$ 28.08
12	56392		Screw,8-18 X 3/8 Tappi		Appelez-nous	-
13	61376P		Filter,lint-white W/inst.				$ 89.22
14	56587		Screw,1/4-20 Hex Hd Sh		Appelez-nous	-
15	60786		Assy,air Duct-front		Appelez-nous	-
16	WP489464		Hex Head Screw   (Replaces: 23628)			Immediately	$ 7.05
17	56938		Bumper		Appelez-nous	-
18	61448		Glide,cylinder-rulon F		Appelez-nous	-
18	Y61027		Baffle,cylinder-extend		Appelez-nous	-
19	58049		Pad,thin		Appelez-nous	-
20	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
21	Y60955		Assy,wiring Harness-cy		Appelez-nous	-
22	31260		Screw, No.8 X 3/8 Ind H				$ 2.68
