01 - Cabinet
02 - Control Panel
03 - Front Bulkhead
04 - Heater Box (electric Models)
05 - Loading Door
06 - Motor
07 - Rear Bulkhead
08 - Terminal Block
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

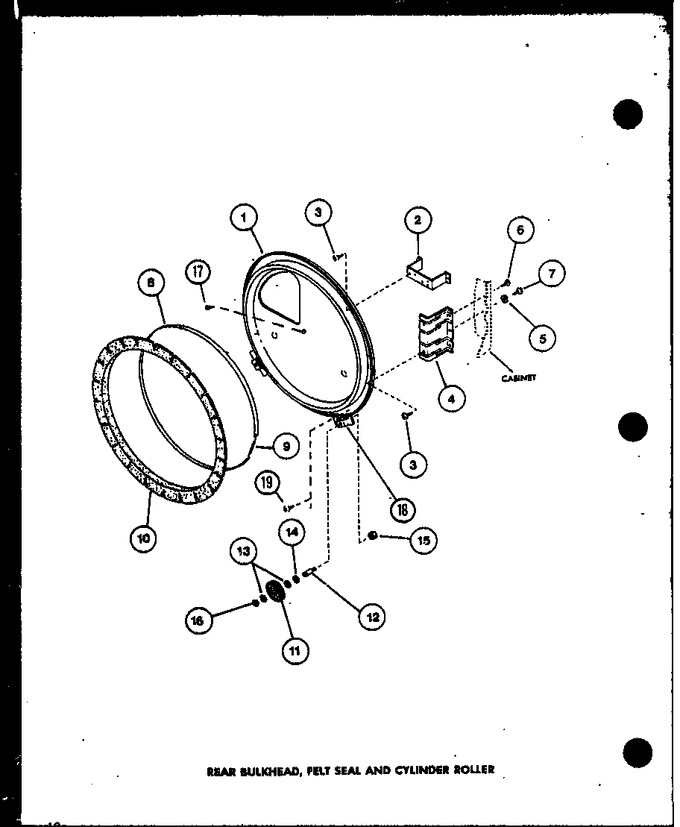

| 1 | Y61127 | Assy, Rear Bulkhead/brkt |
|
- | |||||
| 2 | 60823 | Terminal Block Bracket |
|
- | |||||
| 3 | WP3351614 | Screw, 10-24x3/8 Hex (Replaces: 20530) |
|
Immediately | $ 6.26 | ||||
| 4 | 56055 | Bracket,bulkhead-rear |
|
- | |||||
| 5 | 51474 | Washer,13/64idx1/2odx. |
|
$ 4.35 | |||||
| 6 | 56078 | M400664 |
|
- | |||||
| 7 | 52906 | Setscrew |
|
- | |||||
| 8 | Y56090 | Seal Strap |
|
- | |||||
| 9 | 52310 | Spring |
|
$ 28.08 | |||||
| 10 | WP56088 | Assy,seal (Replaces: 56088) |
|
$ 31.10 | |||||
| 11 | 56457 | Cylinder Roller |
|
- | |||||
| 12 | WP56461 | Shaft (Replaces: 56461) |
|
$ 85.03 | |||||
| 13 | WP233520 | Washer, 501 Id X3/4 Odx (Replaces: 52549) |
|
Immediately | $ 7.16 | ||||
| 14 | 23886 | Washer,.578idx1.25odx1 |
|
$ 1.55 | |||||
| 15 | 56156 | Nut, 3/8-16 Serrated |
|
$ 6.95 | |||||
| 16 | WP23748 | Ring, Retaining (Replaces: 23748) |
|
Immediately | $ 10.75 | ||||
| 17 | WP489464 | Hex Head Screw (Replaces: 23628) |
|
Immediately | $ 7.05 | ||||
| 18 | 56042 | Bracket,cylinder Roller |
|
- | |||||
| 19 | WP3390631 | Hex Head Screw (Replaces: 51780) |
|
$ 7.04 |
