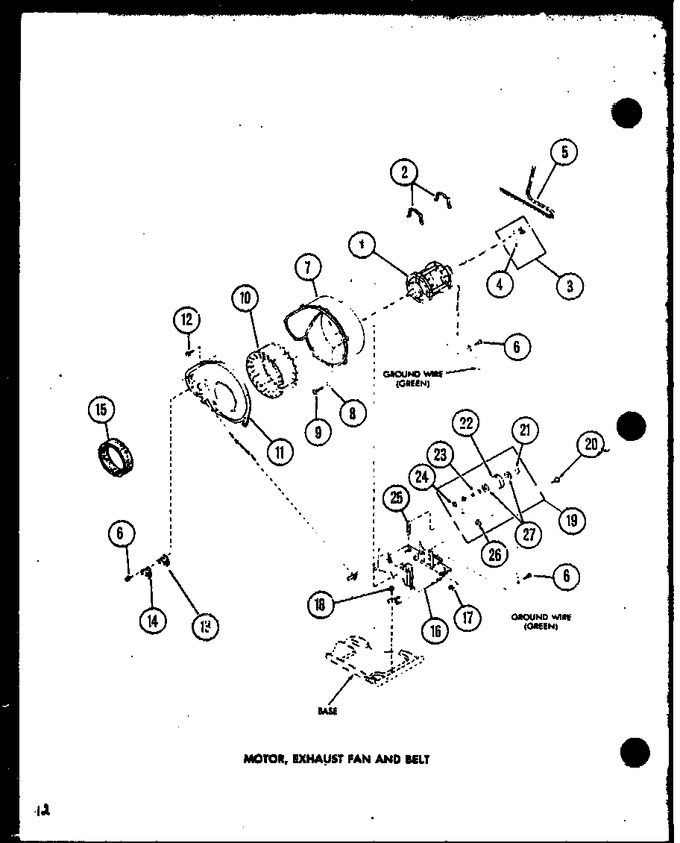

06 - Motor


07 - Rear Bulkhead


08 - Terminal Block


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y58044		Motor,1sp-120/60		Appelez-nous	-
2	WP660658		Clamp, Motor Mount   (Replaces: Y58047)				$ 7.05
3	59173		Motor Pulley Assembly		Appelez-nous	-
4	52906		Setscrew		Appelez-nous	-
5	WP40111201		Belt, Cylinder   (Replaces: 59174)			Immediately	$ 16.81
6	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47
7	D511969WP		Housing, Blower   (Replaces: 56020)				$ 61.51
8	20492		Washer		Appelez-nous	-
9	WP27001200		Hex Head Screw   (Replaces: 56264)				$ 6.91
10	D510139P		Assembly, Blower Fan   (Replaces: 56000)			Immediately	$ 73.39
11	60938P		Cover,blower Housing		Appelez-nous	-
12	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
13	61401		Thermostat Heater				$ 115.17
14	Y61372		Thermostat				$ 43.72
15	56065		Seal				$ 14.16
16	Y60816		Motor Mounting Bracket		Appelez-nous	-
17	WPW10139757		Nut, Hex Jam 1/4-20l   (Replaces: 52566)				$ 7.16
18	26592		Hex Head Screw		Appelez-nous	-
19	WP56170P		Assy, Idler Lever   (Replaces: Y56170)				$ 67.98
20	56587		Screw,1/4-20 Hex Hd Sh		Appelez-nous	-
21	WP23748		Ring, Retaining   (Replaces: 23748)			Immediately	$ 10.75
22	WPY54414		Assembly, Wheel & Bearing   (Replaces: Y54414)			Immediately	$ 19.11
23	WP56461		Shaft   (Replaces: 56461)				$ 85.03
24	56156		Nut, 3/8-16 Serrated				$ 6.95
25	WP56076		Spring, Idler   (Replaces: 56076)				$ 65.70
26	56057		Lever,idler		Appelez-nous	-
27	WP233520		Washer, 501 Id X3/4 Odx   (Replaces: 52549)			Immediately	$ 7.16
