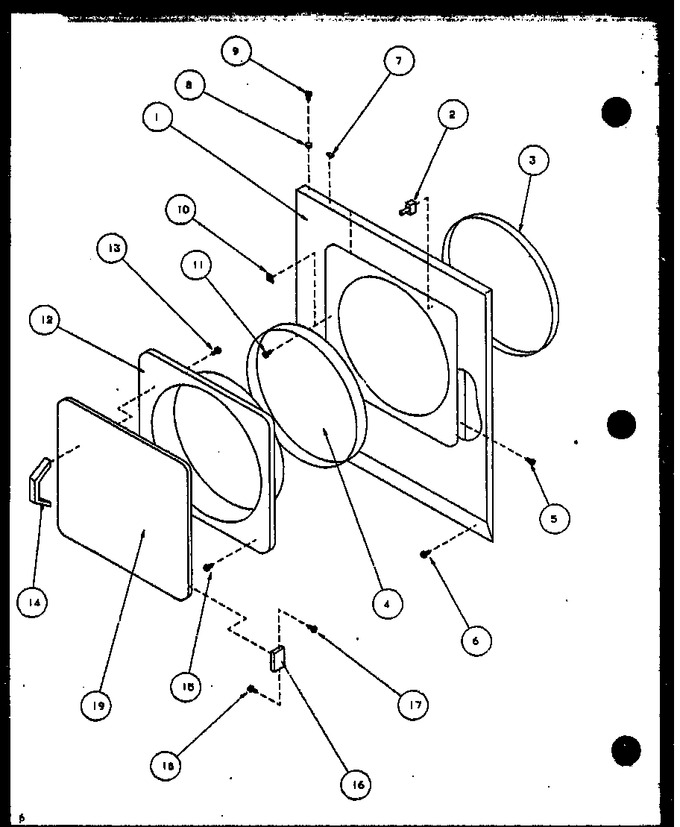

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	62420W		Front Panel, White		Appelez-nous	-
1	62420L		Assy, Frt Pnl/carton		Appelez-nous	-
2	W10169313		Door Switch   (Replaces: 56052)			Immediately	$ 29.18
3	134305		Front Panel Seal   (Replaces: 56091)		Appelez-nous	-
4	61379P		Door Seal   (Replaces: 61379)				$ 39.77
5	Sub. To 807429P		Nut K   (Replaces: 51236)		Appelez-nous	-
6	WP27001200		Screw   (Replaces: 58637)				$ 6.91
7	WP22001650		Hold-down Clip   (Replaces: 28835)			Immediately	$ 7.34
8	56079		Locater, Panel			Immediately	$ 6.95
9	39733		Screw, Tapping   (Replaces: 32671)				$ 6.95
10	LA-1003		Catch, Door   (Replaces: 54660)			Immediately	$ 24.51
11	LA-1003		Strike, Door (metal)   (Replaces: 54661)			Immediately	$ 24.51
12	62152W		Liner,door		Appelez-nous	-
13	52150		Screw, Thermostat		Appelez-nous	-
14	54068P		Pull,door		Appelez-nous	-
15	23407		Nut,speed-8a Tinn C15		Appelez-nous	-
16	56045		Hinge (dryer)				$ 9.33
17	Sub. To D512973		Screw, 8b-16x5/8 Tap   (Replaces: 52864)		Appelez-nous	-
18	22649		Screw,8-32 X 13/32 Fl		Appelez-nous	-
19	62153W		Panel Outer Door		Appelez-nous	-
19	62153L		Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
