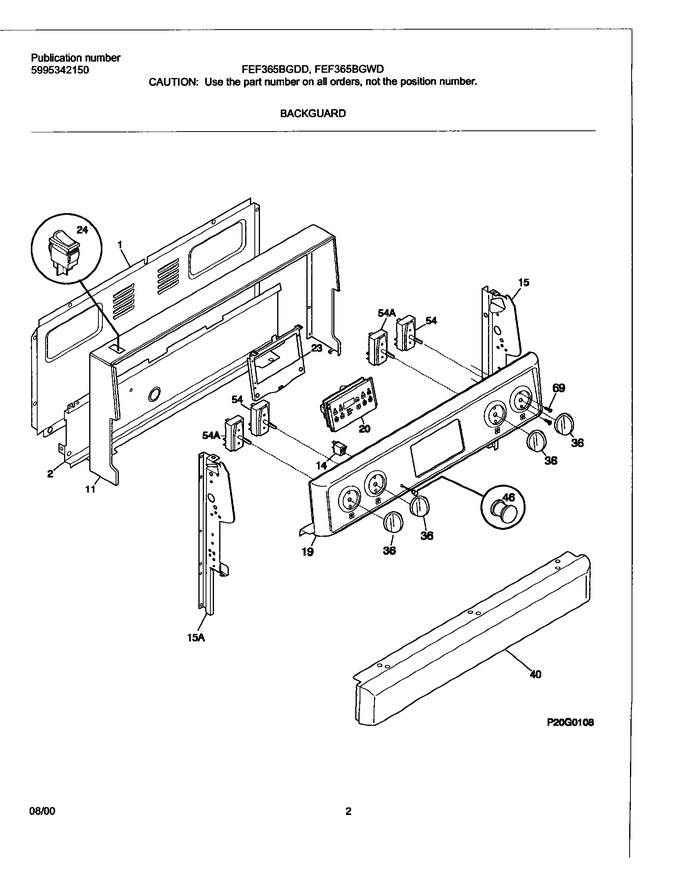

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
11	316061851		Trim-wrapper,black		Appelez-nous	-
11	316083719		Trim,wrapper ,black		Appelez-nous	-
14	316022503		Light-lamp, Indicator, 250 V			Immediately	$ 70.16
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316100534		Panel,control ,black		Appelez-nous	-
20	316101503		Overlay-clock,black		Appelez-nous	-
23	316100301		Bracket-timer		Appelez-nous	-
36	316025108		Knob-control,black		Appelez-nous	-
40	316025800		Panel-manifold,black		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
69	5303292005		Screw (2)		Appelez-nous	-
15A	316023109		Support,backguard ,lh		Appelez-nous	-
F20	316101001		Clock/timer, Electronic				$ 419.79
F24	5304527841		Switch,oven Light ,black ,rocker   (Replaces: 316118100)			Immediately	$ 11.38
F54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
F54A	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
NI	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, No.8-18 X 3/8   (Replaces: 316021108)				$ 10.02
