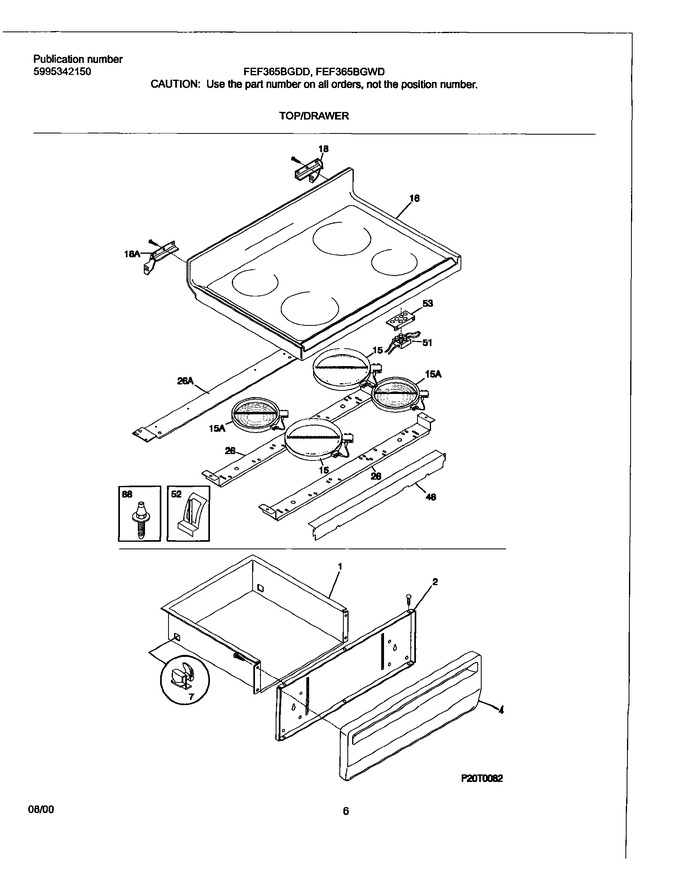

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	08067785		Scre, Hex Washer Head, No.8-18(ab) X 1/2, (non-illustrated)		Appelez-nous	-
4	316084406		Panel-drawer, Almond		Appelez-nous	-
7	3051163		Glide			Immediately	$ 19.41
10	5303280308		Screw-handle				$ 16.96
16	316098104		Main Top, Smooth Top, Almond		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
26	316099101		Channel-support, Element, (2)		Appelez-nous	-
48	316100200		Shield-wire, Main Top		Appelez-nous	-
51	80142193		Indicator Light		Appelez-nous	-
52	316099400		Clip,element Mtg				$ 29.56
53	316099300		Bracket,indicator Light		Appelez-nous	-
88	316099500		Pin,guide ,(2)				$ 6.53
18A	5303273063		Hinge-main Top (lh)				$ 48.41
26A	316099201		Bracket-support, Chassis		Appelez-nous	-
F15	903118-9010		Element-surface 2100w   (Replaces: 318178101)			Immediately	$ 236.18
F15A	318198817		Element-surface,1200w   (Replaces: 318178100)			Immediately	$ 192.78
NI	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
NI	316112101		Cleaner,cooktop		Appelez-nous	-
NI	316089600		Spacer-drawer, (2)		Appelez-nous	-
NI	316045000		Clip-wire		Appelez-nous	-
NI	316021113		Screw,8-18 X 0.500 ,almond		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	3131903		Bumper				$ 55.36
NI	316519700		Screw, Cup Pt, No.8-18 X 3/8   (Replaces: 316021108)				$ 10.02
NI	5308014215		Screw, No.6-20 X 5/16, (4)				$ 2.28
