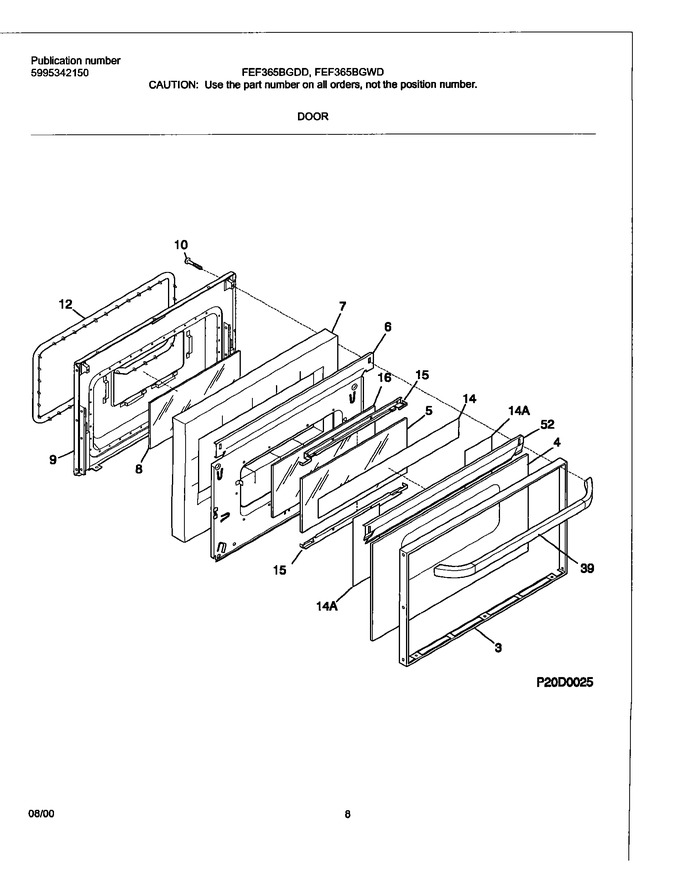

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim,oven Door ,black		Appelez-nous	-
4	316089000		Glass-oven Door,black ,outer		Appelez-nous	-
5	316088700		Glass,oven Door ,airwash				$ 70.17
6	316088401		Shield-wool		Appelez-nous	-
7	316076403		Insulation-door		Appelez-nous	-
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle				$ 16.96
14	5303208656		Alum Foil		Appelez-nous	-
15	316081403		Bracket,glass Mtg		Appelez-nous	-
16	316085701		Glass,oven Door ,heat Barrier				$ 131.41
39	5304529996		Handle-door, Black, Oven   (Replaces: 316091114)				$ 156.11
52	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
14A	5303208655		Alum Foil		Appelez-nous	-
F12	5303131601		Seal, Door				$ 374.63
NI	5303212762		Screw (2)		Appelez-nous	-
NI	5303271648		Burner Box, Wafer Hd Sq Dr , 8-18ab X 1/2			Immediately	$ 13.46
NI	5303292005		Screw (2)		Appelez-nous	-
NI	316132100		Spacer,sponge Pad		Appelez-nous	-
NI	316065306		Plate Warning/caution		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316008401		Washer,3/4 X 1/4 ,steel				$ 11.34
NI	3203618		Pop-rivet		Appelez-nous	-
NI	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
