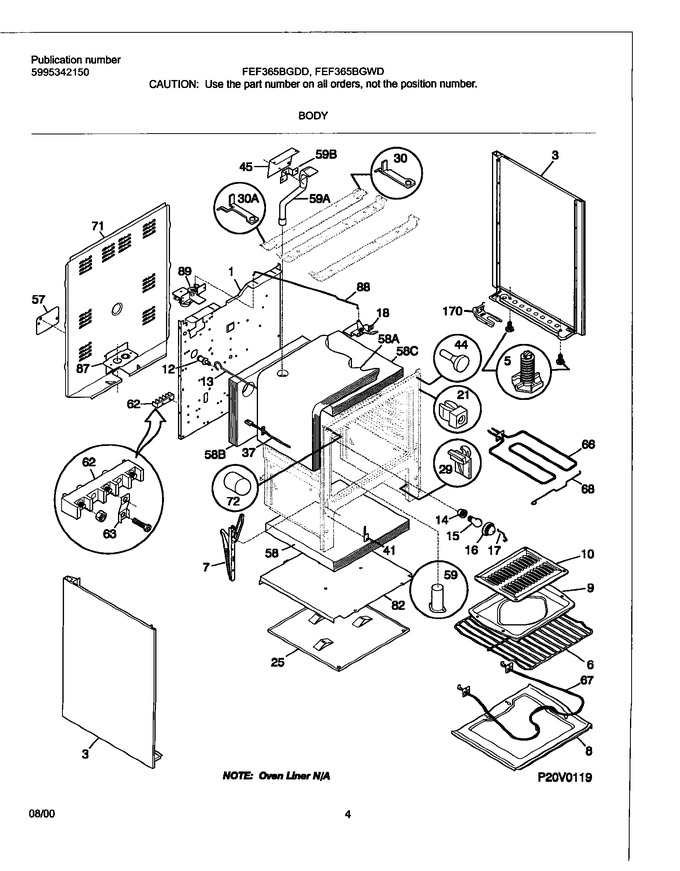

SELECT A DIAGRAM

01 - Cover


02 - Backguard


04 - Body


06 - Top/drawer


08 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316080804		Back-main, Short,dipped ,black		Appelez-nous	-
3	316081037		Body Side Panel,almond ,lh		Appelez-nous	-
3	316081036		Panel Control,almond ,rh		Appelez-nous	-
5	316129200		Leg-leveling (plastic) W/stops				$ 10.92
6	316067902		Rack,oven			Immediately	$ 103.10
7	316007002		Chan-door Hinge (2)				$ 244.07
8	3203540		Bottom Oven		Appelez-nous	-
9	316081900		Insert-broiler Pan				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
13	316026800		Rod-light Switch/door				$ 36.86
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
15	40A15		Bulb   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
21	3014099		Spaceer-bodyside				$ 3.62
25	3200848		Shield,heat ,lower		Appelez-nous	-
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
41	3131570		Cover-hinge (2)				$ 7.35
44	3131903		Bumper				$ 55.36
45	316066100		Shield-wire, S/t Vent		Appelez-nous	-
57	316081101		Cover-access		Appelez-nous	-
58	3200847		Insul. Lower		Appelez-nous	-
59	316073602		Tube-oven Vent				$ 53.35
62	316085600		Insulator		Appelez-nous	-
63	5301145190		Plate=ground Strap		Appelez-nous	-
66	5303051140		Elem Broil				$ 202.71
68	316075300		Support-element, Broil		Appelez-nous	-
71	316015805		Shield-rear Wall		Appelez-nous	-
72	5303285692		Cover-light/switch Rod		Appelez-nous	-
82	5303289913		Shield,insulation		Appelez-nous	-
87	316081200		Bracket,cable Mtg		Appelez-nous	-
88	316026400		Rod-latch, Auto				$ 21.79
170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
170	316112005		Anti-tip Kit,w/bracket,screw   (Replaces: 5303935180)			Immediately	$ 18.91
170	316112005		Anti-tip Bracket   (Replaces: 316107200)			Immediately	$ 18.91
58A	316047708		Insulation,2`` ,oven Wrapper				$ 222.56
58B	316054200		Insulation, 2`` ,oven Back		Appelez-nous	-
59A	316023600		Tube, Oven Vent, Upper		Appelez-nous	-
59B	316040100		Bracket, Mounting, Vent Tube (ni)		Appelez-nous	-
F12	316027701		Switch-oven Light, Door Frame		Appelez-nous	-
F18	316036300		Latch-door		Appelez-nous	-
F37	5304497424		Probe-oven Temp   (Replaces: 316111202)			Immediately	$ 38.32
F62	5303935061		Main Terminal Block		Appelez-nous	-
F67	316075103		Element-bake			Immediately	$ 42.36
F89	316028101		Motor-latch/lock		Appelez-nous	-
NI	316101600		Shield,smoothtop Vent		Appelez-nous	-
NI	5303051099		Nut		Appelez-nous	-
NI	3203550		Button-plug (2)			Immediately	$ 15.22
NI	316519700		Screw, Cup Pt, No.8-18 X 3/8   (Replaces: 316021108)				$ 10.02
NI	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316045000		Clip-wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
