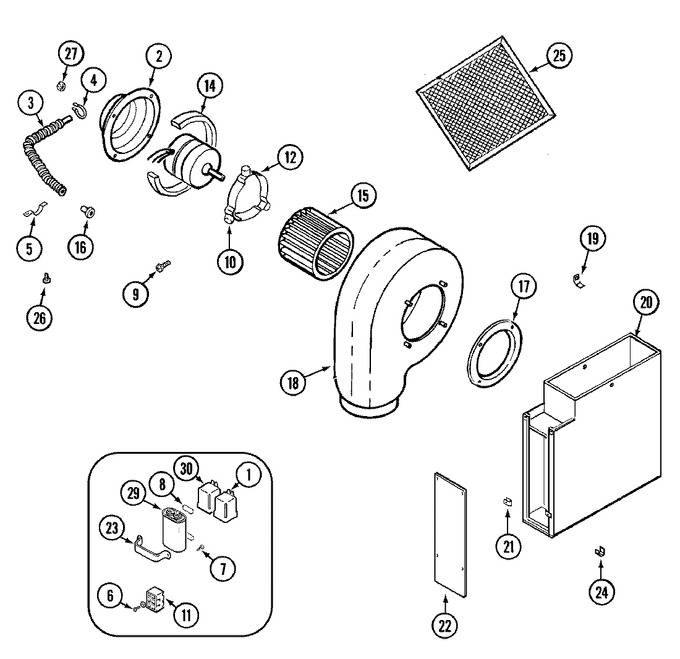

01 - Blower Plenum
02 - Burner Box Assembly
03 - Burner/manifold Assembly
04 - Control Assembly
05 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 705406 | Module, Spark 220v | 1 |
|
- | ||||
| 2 | Y704968 | Cover, Motor | 1 |
|
- | ||||
| 3 | Y705155 | Conduit, Metal | 1 |
|
- | ||||
| 4 | Y705154 | Connector | 1 |
|
- | ||||
| 5 | 707161 | Nut | 1 |
|
- | ||||
| 5 | Y707335 | Clip | 1 |
|
- | ||||
| 5 | 715780 | Clamp, Cable | 1 |
|
- | ||||
| 5 | 702889 | Locknut Cap, W/nylon Insert | 1 |
|
- | ||||
| 6 | 701677 | Screw | 1 |
|
- | ||||
| 7 | W11233072 | Screw (Replaces: Y708733) | 1 |
|
Immediately | $ 12.62 | |||
| 8 | 715938 | Pad, Spacer | 1 |
|
- | ||||
| 9 | Y707402 | Screw | 1 |
|
- | ||||
| 10 | 707407 | Screw | 1 |
|
$ 6.42 | ||||
| 10 | WP71003558 | Isolator (Replaces: Y708926) | 1 |
|
$ 11.47 | ||||
| 11 | Y700862 | Washer | 1 |
|
- | ||||
| 12 | Y707393 | Band, Motor | 1 |
|
- | ||||
| 14 | Y715957 | Foam, Urethane | 1 |
|
- | ||||
| 15 | 703998 | Wheel, Blower | 1 |
|
- | ||||
| 16 | 712311 | Bushing | 1 |
|
- | ||||
| 17 | Y704758 | Ring, Inlet | 1 |
|
- | ||||
| 18 | 712008 | Scroll, Blower Assy. | 1 |
|
- | ||||
| 19 | Y707688 | Retainer, Filter | 1 |
|
- | ||||
| 20 | 712623 | Pelnum Weld Assembly | 1 |
|
- | ||||
| 21 | 701958 | Clip, Tinnerman | 1 |
|
- | ||||
| 22 | 704547 | Plate, Cover | 1 |
|
- | ||||
| 22 | WP59002061 | Screw (Replaces: Y707172) | 1 |
|
$ 6.98 | ||||
| 23 | 702012 | Clamp | 1 |
|
- | ||||
| 24 | Y700834 | Clip | 1 |
|
- | ||||
| 25 | WP707929 | Filter, Grease (Replaces: 707929) | 1 |
|
Immediately | $ 44.51 | |||
| 26 | WP71001171 | Screw (Replaces: Y701379) | 1 |
|
$ 6.26 | ||||
| 27 | WPY707702 | Locknut (Replaces: Y707702) | 1 |
|
Immediately | $ 6.26 | |||
| 29 | 705056 | Capacitor | 1 |
|
- | ||||
| NI | WP71001171 | Screw (Replaces: Y701379) | 1 |
|
$ 6.26 | ||||
| NI | Y707695 | Bushing | 1 |
|
- | ||||
| NI | 712310 | Tinnerman | 1 |
|
- | ||||
| NI | Y707150 | Screw | 1 |
|
- | ||||
| NI | 703530 | Relay, Fan | 1 |
|
- | ||||
| NI | M0282005 | Nut, Hex (Replaces: 701719) | 1 |
|
$ 7.07 | ||||
| NI | 705418 | Harness, Wire | 1 |
|
- | ||||
| NI | 702631 | Wire, Brown | 1 |
|
- | ||||
| NI | 703618 | Wire, Ground | 1 |
|
- | ||||
| NI | 705405 | Wire, Red | 1 |
|
- | ||||
| NI | 705417 | Harness, Wire | 1 |
|
- | ||||
| NI | 705425 | Block, Terminal | 1 |
|
- | ||||
| NI | 712622 | Motor Assy | 1 |
|
- | ||||
| NI | 705416 | Harness, Wire | 1 |
|
- | ||||
| NI | Y705055 | Motor (220 Volts) | 1 |
|
- |
