01 - Blower Plenum
02 - Burner Box Assembly
03 - Burner/manifold Assembly
04 - Control Assembly
05 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

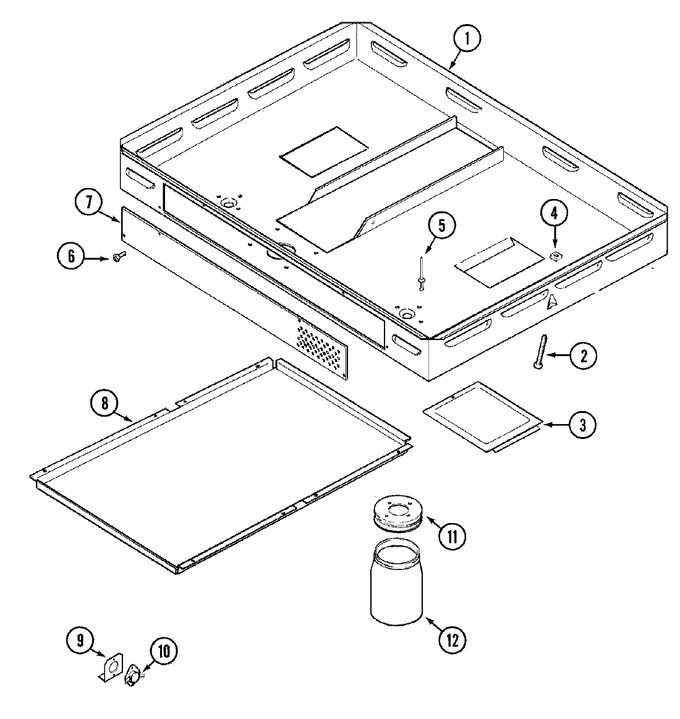

| 1 | Y712275 | Box, Burner | 1 |
|
- | ||||
| 2 | Y707121 | Screw | 1 |
|
- | ||||
| 3 | 702333 | Cover, Access(r.h) | 1 |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: Y700502) | 1 |
|
Immediately | $ 7.04 | |||
| 4 | M0282009 | Nut,square (Replaces: Y707124) | 1 |
|
$ 12.06 | ||||
| 4 | WPW10253196 | Screw (Replaces: Y707113) | 1 |
|
$ 3.76 | ||||
| 5 | WP210720 | Rivet, Jar Lid (Replaces: Y707128) | 1 |
|
$ 12.14 | ||||
| 6 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| 7 | Y704538 | Cover, Front | 1 |
|
- | ||||
| 7 | WP74003976 | Washer (Replaces: 702592) | 1 |
|
$ 6.47 | ||||
| 8 | 3601F261-51 | Baffle, Bottom (lt) (Replaces: 704527) | 1 |
|
$ 216.98 | ||||
| 9 | 705423 | Bracket, Limit | 1 |
|
- | ||||
| 10 | 705422 | Limit, Thermal | 1 |
|
- | ||||
| 10 | 705424 | Wire, Blk | 1 |
|
- | ||||
| 11 | Y707870 | Lid, Jar | 1 |
|
- | ||||
| 12 | WPY707869 | Jar, Drain (Replaces: Y707869) | 1 |
|
$ 61.43 |
