01 - Blower Plenum
02 - Burner Box Assembly
03 - Burner/manifold Assembly
04 - Control Assembly
05 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

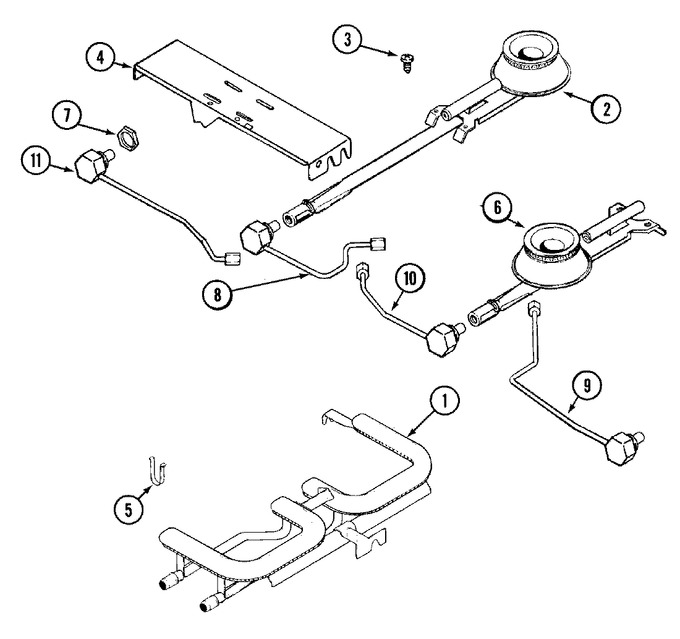

| 1 | Y712601 | Burner, Grill | 1 |
|
$ 304.99 | ||||
| 2 | 74005189 | Burner, Rear (Replaces: Y705402) | 1 |
|
$ 211.73 | ||||
| 3 | WP90767 | Screw (Replaces: 715773) | 1 |
|
Immediately | $ 7.04 | |||
| 4 | WP3801F403-80 | Bracket, Burner (Replaces: Y704519) | 1 |
|
$ 71.17 | ||||
| 5 | 704549 | Clip, Spring | 1 |
|
- | ||||
| 6 | WP7505P283-60 | Burner, Front (Replaces: Y705401) | 1 |
|
$ 211.46 | ||||
| 7 | Y704977 | Nut, 5/8`` Hex | 1 |
|
- | ||||
| 7 | Y704947 | Washer | 1 |
|
- | ||||
| 8 | 705411 | Tube, Burner (rr) | 1 |
|
- | ||||
| 9 | 705413 | Tube, Burner (lr) | 1 |
|
- | ||||
| 10 | 705412 | Tube, Burner (lf) | 1 |
|
- | ||||
| 11 | 705410 | Tube, Burner (rf) | 1 |
|
- |
