View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower Plenum
02 - Burner Box Assembly
03 - Burner/manifold Assembly
04 - Control Assembly

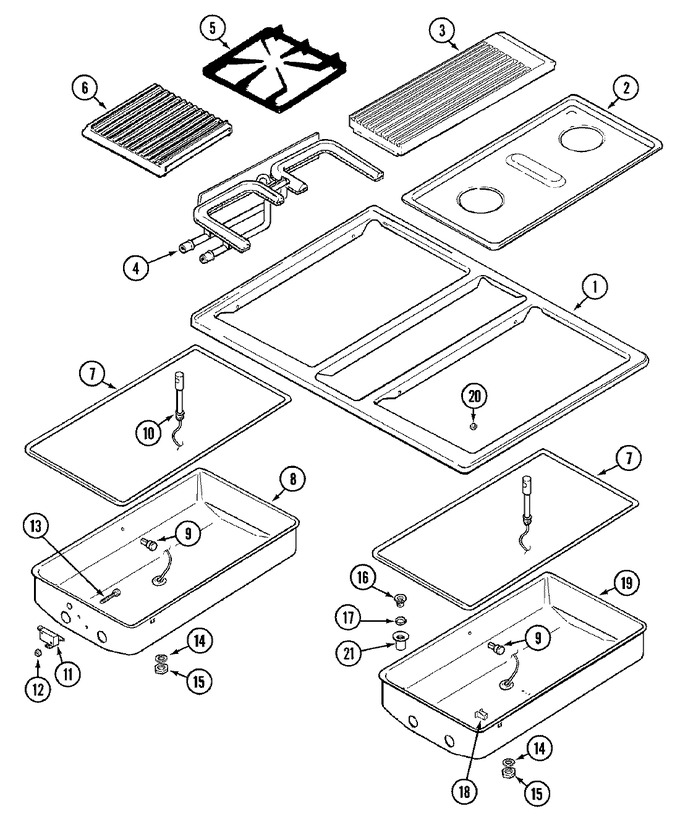

05 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y712616 | Top, Assembly (black) | 1 |
|
- | ||||
| 2 | Y712274 | Pan, Aeration (blk) | 1 |
|
- | ||||
| 3 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 | |||
| 3 | Y704570 | Grill, Air (blk) | 1 |
|
- | ||||
| 4 | Y712601 | Burner, Grill | 1 |
|
$ 304.99 | ||||
| 5 | Y705483 | Grate, Surface | 1 |
|
- | ||||
| 6 | Y04100054 | Grate, Grill | 2 |
|
- | ||||
| 6 | Y704544 | Grate, Grill | 1 |
|
- | ||||
| 7 | Y704979 | Seal, Pan | 1 |
|
- | ||||
| 8 | Y704924 | Pan, Grill | 1 |
|
- | ||||
| 9 | 704536 | Pin, Locator | 1 |
|
- | ||||
| 10 | WP71002179 | Ignitor, Spark (Replaces: 704535) | 1 |
|
$ 181.49 | ||||
| 11 | 7403P620-60 | Switch, Micro (Replaces: Y704533) | 1 |
|
$ 141.22 | ||||
| 12 | Y704522 | Nut | 1 |
|
- | ||||
| 12 | Y704534 | Insulator, Switch | 1 |
|
- | ||||
| 12 | 715617 | Washer (teflon) | 1 |
|
- | ||||
| 13 | DE81-04441A | Screw (Replaces: 702380) | 1 |
|
$ 329.62 | ||||
| 14 | 704568 | Lockwasher | 1 |
|
$ 13.02 | ||||
| 15 | Y703856 | Nut, Jam | 1 |
|
$ 5.53 | ||||
| 16 | 702748 | Nut, Drain Tube | 1 |
|
- | ||||
| 17 | 702747 | Washer, Teflon | 1 |
|
- | ||||
| 18 | Y700503 | Clip, Retainer | 1 |
|
- | ||||
| 19 | 704925 | Pan, Grill (rt) | 1 |
|
- | ||||
| 20 | Y052721 | Nut (Replaces: Y704553) | 1 |
|
$ 21.38 | ||||
| 21 | 704546 | Tube, Drain | 1 |
|
- |
