SELECT A DIAGRAM

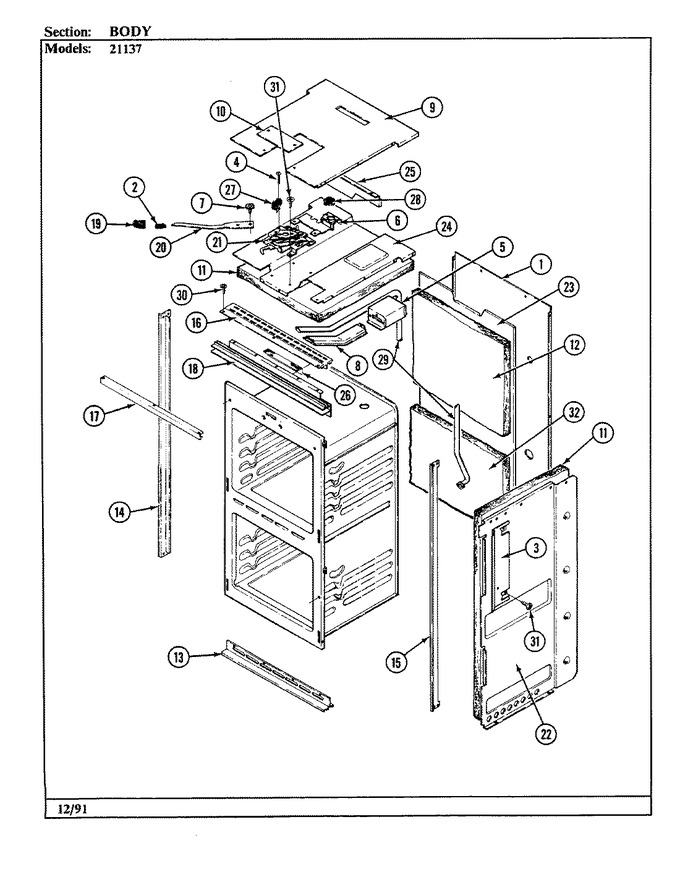

01 - Body


02 - Control Panel


03 - Door (lower)


04 - Door (upper)


05 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F143-51		Back, Main	80	Appelez-nous	-
2	7112P003-60		Clip, Latch Handle	80	Appelez-nous	-
3	3601F130-51		Baffle, Side	80	Appelez-nous	-
4	7101P035-60		Screw, Switch	80	Appelez-nous	-
5	4006W046-45		Box, Vent	80	Appelez-nous	-
6	3801F128-45		Bracket, Hi Limit	80	Appelez-nous	-
7	WP4159193		Screw   (Replaces: 7101P115-60)	80			$ 4.29
8	3818W002-15		Channel, Vent Assembly	80	Appelez-nous	-
9	4005F202-51		Cover, Box	80	Appelez-nous	-
10	4005F160-45		Cover, Lock	80	Appelez-nous	-
11	7002P108-60		Insulation, Wrapper	80	Appelez-nous	-
12	7002P112-60		Insulation, Top & Back	80	Appelez-nous	-
13	7706P153-60		Extrusion, Bottom (blk)	80	Appelez-nous	-
14	7706P112-60		Extrusion, Side-l	80	Appelez-nous	-
14	7750P029-60		Extension, Side (left)	84	Appelez-nous	-
14	7750P014-60		Extrusion, Side-l	82	Appelez-nous	-
15	7750P030-60		Extension, Side (right)	84	Appelez-nous	-
15	7750P015-60		Extrusion, Side-r	82	Appelez-nous	-
15	7706P113-60		Extrusion, Side-r	80	Appelez-nous	-
16	7706P114-60		Extrusion, Top	80	Appelez-nous	-
17	7706P185-60		Extrusion, Top Front	80	Appelez-nous	-
18	7756P023-60		Extrusion, Vent	82	Appelez-nous	-
18	7756P006-60		Extrusion, Vent	80	Appelez-nous	-
19	7701P068-60		Handle, Latch (blk)	80	Appelez-nous	-
20	8009P011-60		Lever, Latch	80	Appelez-nous	-
21	8002P072-60		Latch Assy.   (Replaces: 8002P016-60)	80			$ 306.52
22	2618F056-51		Panel, Side-lt	80	Appelez-nous	-
22	2618F055-51		Panel, Side Right	80	Appelez-nous	-
23	3804F052-51		Ret Rear Insul	80	Appelez-nous	-
24	3804F053-51		Retainer,top	80	Appelez-nous	-
25	3604F101-80		Shield, Air	80	Appelez-nous	-
26	3604F048-80		Shield, Terminal	80	Appelez-nous	-
27	7003P001-60		Insulator	80	Appelez-nous	-
27	7403P007-60		Switch, Door Lock	80	Appelez-nous	-
28	7403P063-60		Switch, High Limit	80			$ 156.41
29	8026P014-60		Tube, Oven Vent	80	Appelez-nous	-
30	7103P051-60		Nut, Snap	80	Appelez-nous	-
30	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	80			$ 15.94
30	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)	80			$ 9.89
30	7103P040-60		Nut, Snap (wht)	80	Appelez-nous	-
31	WP7101P126-60		Screw   (Replaces: 7101P061-60)	80		Immediately	$ 6.85
32	7002P007-60		Insulation, Botton	80	Appelez-nous	-
