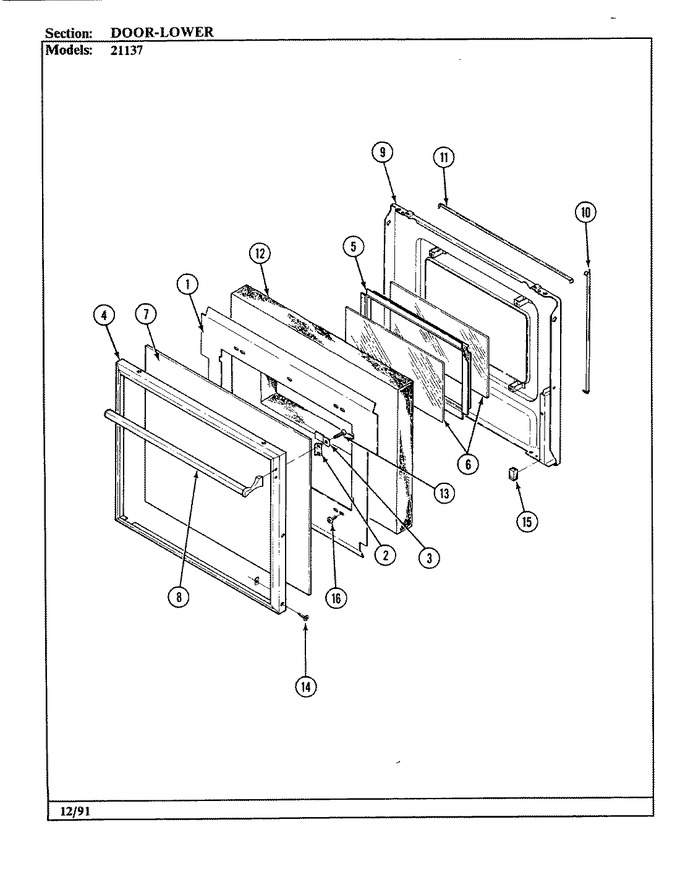

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3601F103-51		Baffle, Door	80	Appelez-nous	-
2	7112P017-60		Clip, Door Handle	80	Appelez-nous	-
3	3804F010-50		Retainer	80	Appelez-nous	-
4	7706P248-60		Frame	80	Appelez-nous	-
5	3603F013-80		Frame, Window----na	80	Appelez-nous	-
6	7902P035-60		Glass, Door Inner	80	Appelez-nous	-
7	7902P263-60		Glass, Door Lower	80	Appelez-nous	-
8	7701P017-60		Handle, Door	80	Appelez-nous	-
9	2402W132-19		Lining, Door	87	Appelez-nous	-
9	2402W132-15		Lining Assembly	80	Appelez-nous	-
10	7212P007-60		Seal, Door (vertical)	80			$ 47.10
11	WP7212P006-60		Seal, Door (horizontal)   (Replaces: 7212P006-60)	80			$ 105.81
12	7002P019-60		Insulation, Door Lower	80	Appelez-nous	-
13	7101P239-60		Screw	80	Appelez-nous	-
14	7101P242-60		Screw	80	Appelez-nous	-
15	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	80			$ 11.95
15	7208P001-60		Seal, Glass	80	Appelez-nous	-
16	7101P089-60		Screw, Door Handle	80	Appelez-nous	-
16	WP7101P126-60		Screw   (Replaces: 7101P061-60)	80		Immediately	$ 6.85
16	WP4159193		Screw, Hinge   (Replaces: 7101P017-60)	80			$ 4.29
