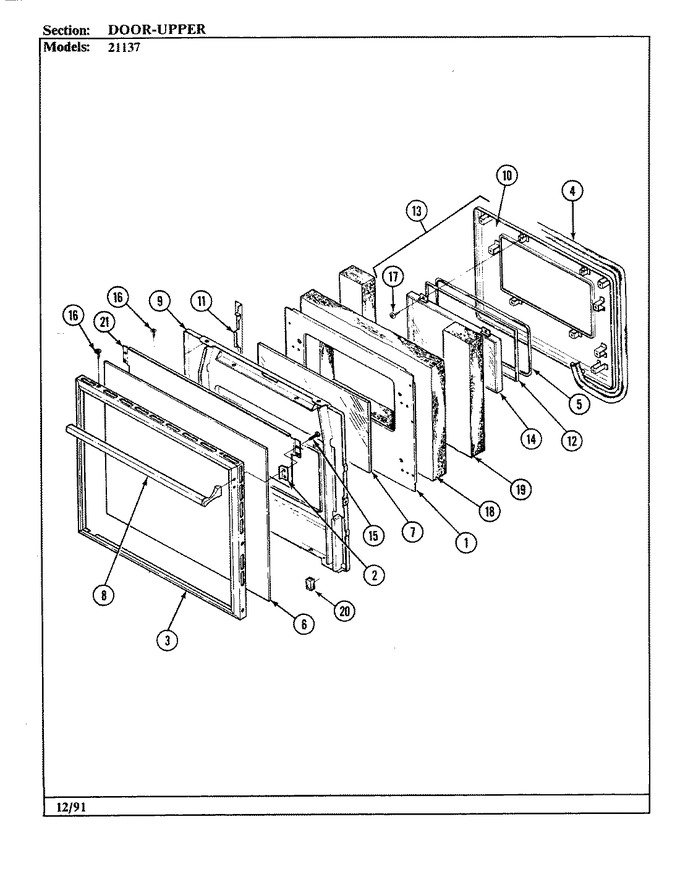

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11684512		Screw (10abx1.0-zn)   (Replaces: 7101P060-60)	80			$ 12.69
1	3601W131-51		Baffle, Door Assembly	80	Appelez-nous	-
2	7112P017-60		Clip, Door Handle	80	Appelez-nous	-
3	7706P250-60		Frame	80	Appelez-nous	-
4	7201P004-60		Gasket	80	Appelez-nous	-
5	7201P020-60		Gasket	80	Appelez-nous	-
6	8270P065-60		Tape	80	Appelez-nous	-
6	7902P265-60		Glass, Door Screened	80	Appelez-nous	-
7	7902P097-60		Glass, Inner	80			$ 63.87
8	7701P017-60		Handle, Door	80	Appelez-nous	-
9	2402W130-15		Lining Assembly	80	Appelez-nous	-
9	8114P274-60		Label (cleaning Inst.)	83	Appelez-nous	-
9	2402W130-19		Lining, Door	87	Appelez-nous	-
10	2410W034-15		Pad, Door	80	Appelez-nous	-
10	2410W038-19		Pad Door	87	Appelez-nous	-
10	2410W038-15		Pad, Oven Door	80	Appelez-nous	-
11	3804F021-45		Retainer, Gasket	80	Appelez-nous	-
12	3804F051-80		Retainer, Glass	80	Appelez-nous	-
13	2410A038-15		Pad, Oven Door Assembly	80	Appelez-nous	-
13	2410A042-19		Pad, Oven Door Assy.	87	Appelez-nous	-
13	2410A034-15		Pad, Oven Door Assembly	80	Appelez-nous	-
14	5700A082-60		Window Assy.	80			$ 164.77
15	7101P239-60		Screw	80	Appelez-nous	-
16	7101P242-60		Screw	80	Appelez-nous	-
17	WP7101P126-60		Screw   (Replaces: 7101P061-60)	80		Immediately	$ 6.85
18	7002P023-60		Insulation, Door----na	80	Appelez-nous	-
19	7002P021-60		Insulation, Door	80	Appelez-nous	-
20	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	80			$ 11.95
21	3804F017-51		Retainer, Glass	80	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
