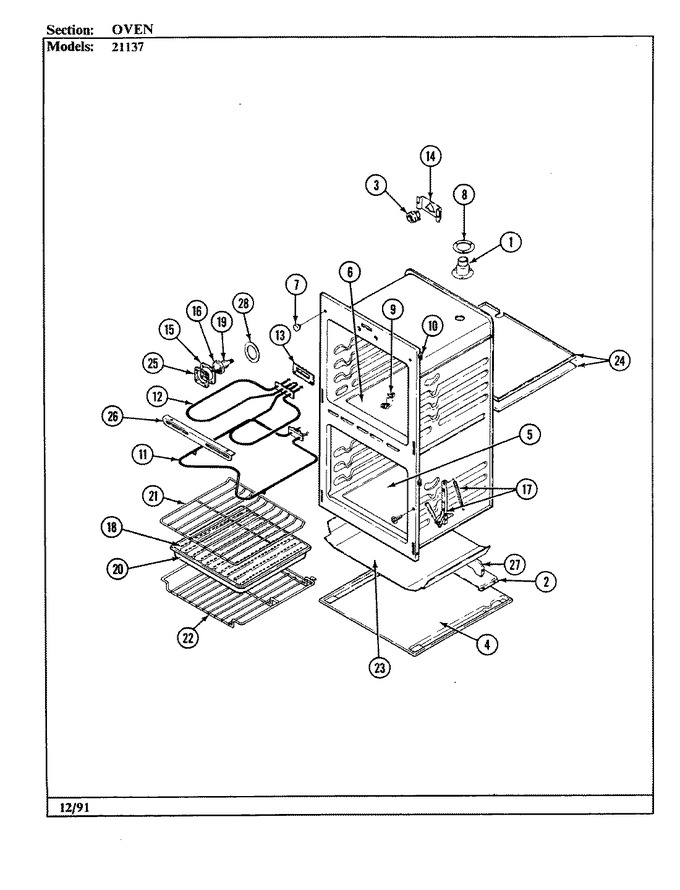

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7505P018-60		Catalyst Burner	80	Appelez-nous	-
1	7101P287-60		Screw, Metal Grounding	80			$ 12.03
2	3601F005-80		Baffle, Base	80	Appelez-nous	-
3	7408P001-60		Recept, Oven Light	80	Appelez-nous	-
3	WP7101P485-60		Screw, Base   (Replaces: 7101P084-60)	80			$ 26.33
3	7408P002-60		Receptacle, Lamp	80	Appelez-nous	-
4	4003F011-80		Base, Wall Oven	80	Appelez-nous	-
5	2205F004-15		Bottom, Oven (lower)	80	Appelez-nous	-
5	2205F004-19		Bottom, Oven (lower)	87	Appelez-nous	-
6	2205F003-19		Bottom, Oven	87	Appelez-nous	-
6	2205F003-15		Bottom, Oven (upper)	80	Appelez-nous	-
7	8003P009-60		Bumper, Door (square)	85	Appelez-nous	-
7	8003P002-60		Bumper Door (round)	80	Appelez-nous	-
8	7201P016-60		Gasket	80	Appelez-nous	-
9	4005F011-35		Cover, Cap Hole	80	Appelez-nous	-
9	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)	80		Immediately	$ 11.07
10	7112P020-60		Clip, Oven Front	80	Appelez-nous	-
11	WPY04000066		Element Bake   (Replaces: 7406P013-60)	80		Immediately	$ 70.53
12	WPY04000048		Element,broil   (Replaces: 7406P003-60)	80			$ 160.58
13	7201P003-60		Gasket, Element	80	Appelez-nous	-
14	3801F024-51		Bracket	80	Appelez-nous	-
15	7201P015-60		Gasket, Lamp Retainer	80	Appelez-nous	-
16	7902P057-60		Glass, Lamp Guard	80	Appelez-nous	-
17	7106A019-60		Hinge, Upper	80	Appelez-nous	-
17	7106A020-60		Hinge, Oven Door	80	Appelez-nous	-
18	4396923		Insert, Broiler Pan   (Replaces: 3413F013-15)	80		Immediately	$ 52.04
18	4396923		Insert, Broil Pan   (Replaces: 3413F013-19)	87		Immediately	$ 52.04
19	4001W012-51		Housing Lamp	80	Appelez-nous	-
19	3604F037-44		Cover	80			$ 30.78
19	40A15		Bulb, Oven   (Replaces: 7407P026-60)	80		Immediately	$ 1.98
19	7002P094-60		Insulation, Lamp Housing	80	Appelez-nous	-
20	4396923		Pan, Broiler   (Replaces: 3401F015-15)	80		Immediately	$ 52.04
20	3401F014-19		Pan, Broil	87	Appelez-nous	-
21	7801P005-60		Rack	80	Appelez-nous	-
22	7801P007-60		Rack, Offset	80	Appelez-nous	-
23	3804W034-51		Retainer, Bottom	80	Appelez-nous	-
24	3801F054-51		Retainer, Insulation	80	Appelez-nous	-
24	7002P007-60		Insulation, Botton	80	Appelez-nous	-
25	3804F011-45		Retainer	80	Appelez-nous	-
26	3807F176-15		Support, Broil Element	80	Appelez-nous	-
27	3807F135-80		Support	80	Appelez-nous	-
28	7201P014-60		Gasket, Housing	80	Appelez-nous	-
