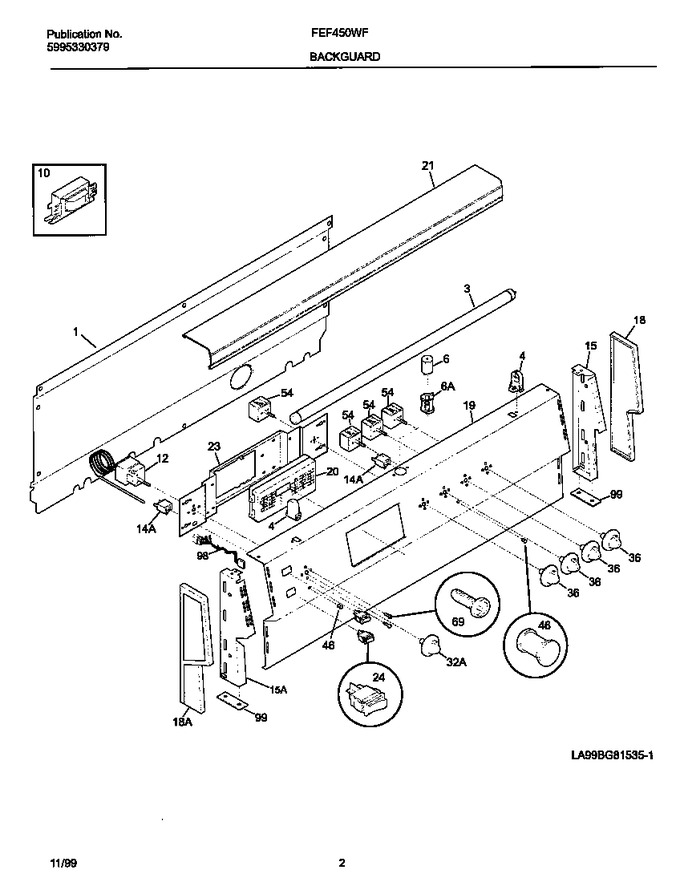

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318086800		Shield Backguard		Appelez-nous	-
3	5303286690		Lamp-fluorescent, Backguard		Appelez-nous	-
4	318110300		Receptacle-lamp,rh/lh				$ 11.82
6	318110400		Holder,starter				$ 52.29
6	5308068062		Starter,lamp				$ 30.46
10	318122802		Ballast-lamp		Appelez-nous	-
12	5304400505		Thermostat		Appelez-nous	-
14	5303323991		Light/lamp,indicator				$ 26.25
15	5303304001		Bracket-endcap, Lh				$ 5.62
15	5303304000		Bracket-endcap, Rh				$ 7.14
18	5303304003		End Cap, Almond, Rh		Appelez-nous	-
18	5303304005		End Cap, Almond, Lh		Appelez-nous	-
19	318005719		Panel-control,metal		Appelez-nous	-
20	318185810		Controller Electric Ay		Appelez-nous	-
21	318051303		Trim-canopy/shield, Top		Appelez-nous	-
23	318015011		Bracket-timer		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
32	318016325		Knob-thermostat		Appelez-nous	-
36	5303299751		Knob-surface Unit, Black, (4)		Appelez-nous	-
46	5308006417		Lens-light/lamp, Indicator, Red, (2)				$ 19.06
54	318120501		Switch-surface Unit, (4)				$ 244.13
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
98	318092405		Wiring Harness		Appelez-nous	-
99	5303304544		Spacer		Appelez-nous	-
*51400	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*51401	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*51402	318052086		Wiring Harness		Appelez-nous	-
