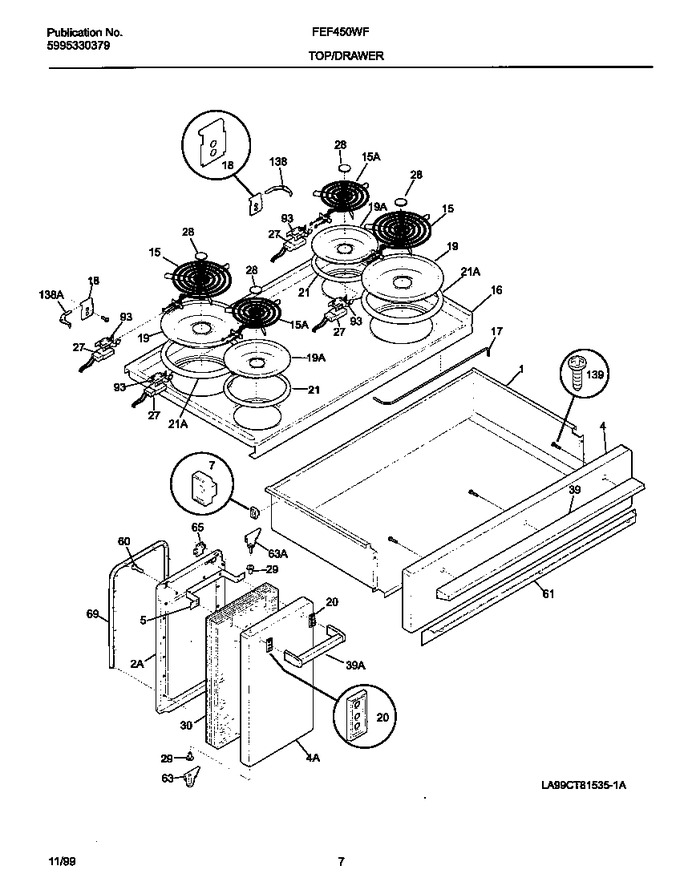

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202108		Drawer-utility		Appelez-nous	-
2	318048204		Liner-small Door		Appelez-nous	-
4	318009309		Panel-oven Door, Almond, Small		Appelez-nous	-
4	5303326191		Panel-drawer, Almond		Appelez-nous	-
5	318014500		Spacer-handle		Appelez-nous	-
7	5303326236		Drawer Guide		Appelez-nous	-
15	PS12-4BK		Element-surface, Small, 1500w   (Replaces: 5303309000)			Immediately	$ 35.96
15	316442301		Element-surface, Large/8 Inch   (Replaces: 5303309001)			Immediately	$ 44.39
16	08011984		Main Top, Almond		Appelez-nous	-
17	3051554		Rod-maintop Support		Appelez-nous	-
18	3051745		Retainer-hinge Pin 57034000		Appelez-nous	-
19	318138501		Pan-burner, Small		Appelez-nous	-
19	318138500		Pan-burner, Large		Appelez-nous	-
20	3201572		Spacer-handle, (2)		Appelez-nous	-
21	5308003113		Trim Ring-small		Appelez-nous	-
21	5308003114		Trim Ring-large		Appelez-nous	-
27	RR500		Terminal Block   (Replaces: 5303323704)			Immediately	$ 9.42
28	5303301461		Medallion, Surface Element		Appelez-nous	-
29	318141800		Spacer-hinge Pin				$ 14.49
30	5301311649		Insulation-door, Small Oven		Appelez-nous	-
39	3201576		Handle-drawer		Appelez-nous	-
39	318040603		Handle-door		Appelez-nous	-
60	5303323139		Screw,10-24 X 29/32				$ 13.46
61	318107700		Toeplate		Appelez-nous	-
63	318024505		Hinge-lower		Appelez-nous	-
63	318024507		Hinge-top		Appelez-nous	-
65	3204306		Latch-door, Small		Appelez-nous	-
69	318053300		Seal-oven Door		Appelez-nous	-
93	318122500		Support,terminal Block ,(4)		Appelez-nous	-
139	08011955		Screw,10-24 X 3/8 ,square Drive			Immediately	$ 9.36
*51408	08002868		Screw 10 X 24 X 1/2				$ 14.18
*51409	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*51410	5303288566		Screw <6-20 X 1/4 >,clock   (Replaces: 5303320848)				$ 2.12
*51411	5303321106		Plug-button				$ 11.60
*51412	3051070		Screw,hex Washer Head ,10-24 X 0.438 ,special		Appelez-nous	-
*51413	5303317975		Screw < 10 X 1/2 >,10 X 1/2		Appelez-nous	-
*51414	318086002		Flat Washer		Appelez-nous	-
138A	5301315631		Bracket-hinge, Main Top Rh		Appelez-nous	-
138B	3051658		Bracket-hinge, Main Top Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
