SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

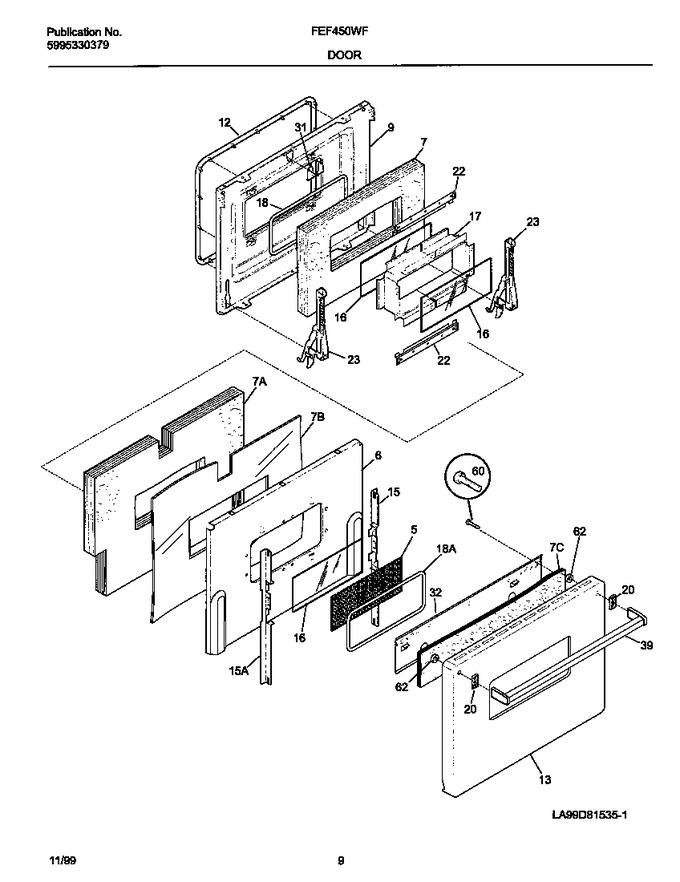

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303310508		Glass-oven Door,tinted ,inner		Appelez-nous	-
6	318057000		Baffle-door		Appelez-nous	-
7	318106000		Insulation-door		Appelez-nous	-
7	3204813		Insulation,27.75x5.12x0.56 ,oven Door		Appelez-nous	-
7	5303310532		Insulation-door		Appelez-nous	-
7	5304400472		Insulation,oven Door		Appelez-nous	-
9	318048702		Liner-oven Door		Appelez-nous	-
12	318053103		Seal-oven Door			Immediately	$ 150.03
13	318009102		Panel-oven Door		Appelez-nous	-
15	318024000		Bracket-glass Mtg, Rh		Appelez-nous	-
15	318024001		Bracket-glass Mtg, Lh		Appelez-nous	-
16	5303310533		Glass-oven Door, Heat Barrier				$ 220.55
17	318139000		Spacer-glass		Appelez-nous	-
18	5303310531		Seal-rope		Appelez-nous	-
18	318053203		Gasket				$ 57.54
20	3201572		Spacer-handle, (2)		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
23	318024700		Hinge-oven Door, Assembly		Appelez-nous	-
31	5303310536		Latch-door				$ 30.66
32	318057202		Deflector-handle		Appelez-nous	-
39	318040602		Handle-door, Oven		Appelez-nous	-
60	3051070		Screw,hex Washer Head ,10-24 X 0.438 ,special		Appelez-nous	-
62	5303310504		Spacer-door Handle,(2)		Appelez-nous	-
*51415	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*51416	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*51417	5303308450		Screw, 8 X 3/8		Appelez-nous	-
*51418	318086002		Flat Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
