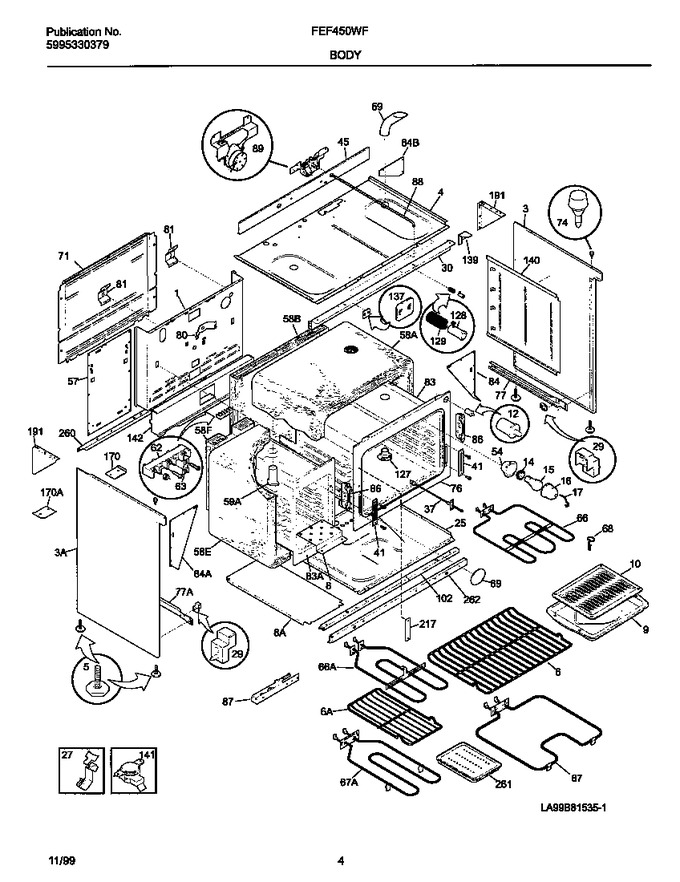

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318066402 | Back-main |
|
- | |||||
| 3 | 5308012529 | Panel-bodyside, Almond, Rh |
|
- | |||||
| 3 | 5308012530 | Panel-bodyside, Almond, Lh |
|
- | |||||
| 4 | 318073704 | Burner Box |
|
- | |||||
| 5 | 318175510 | Screw-levelling (Replaces: 318175503) |
|
Immediately | $ 24.26 | ||||
| 6 | 318119700 | Rack-oven, Small |
|
- | |||||
| 6 | 318025314 | Rack-oven (Replaces: 5303310522) |
|
Immediately | $ 148.70 | ||||
| 8 | 318071900 | Panel-oven Bottom |
|
- | |||||
| 9 | 318138800 | Pan-broiler |
|
- | |||||
| 10 | 318126400 | Insert-broiler Pan |
|
- | |||||
| 12 | 318394803 | Switch-light (Replaces: 318089910) |
|
Immediately | $ 44.23 | ||||
| 14 | 316116400 | Socket-light/lamp (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer Lenz |
|
- | |||||
| 25 | 318179100 | Shield Heat Lower |
|
- | |||||
| 27 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 29 | 3051654 | Guide-drawer, Front |
|
- | |||||
| 30 | 318023909 | Bracket-main Top |
|
- | |||||
| 37 | 316217002 | Probe-oven Temp (Replaces: 316111203) |
|
Immediately | $ 61.23 | ||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 45 | 318057401 | Shield-wire |
|
- | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 57 | 318055701 | Panel-back |
|
- | |||||
| 58 | 5303310538 | Insulation Oven Back |
|
- | |||||
| 58 | 5301167905 | Insulation, Oven Back |
|
- | |||||
| 58 | 5301305817 | Insulation, Oven Wrapper |
|
- | |||||
| 58 | 5303310539 | Insulation Wrapper |
|
- | |||||
| 59 | 318072501 | Tube-oven Vent |
|
- | |||||
| 59 | 3017402 | Tube-oven Vent, Lh |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 63 | 5303310517 | Plate,ground Strap |
|
- | |||||
| 66 | 318110100 | Element-broil, Small Oven |
|
- | |||||
| 66 | 318255605 | Element-broil (Replaces: 5303310513) |
|
Immediately | $ 192.78 | ||||
| 67 | 318110600 | Element-bake, Small Oven |
|
- | |||||
| 67 | 318255006 | Element-bake (Replaces: 5303310512) |
|
Immediately | $ 185.14 | ||||
| 68 | 5304403015 | Support-element |
|
$ 35.04 | |||||
| 69 | 318036400 | Plate-oven Light,small Oven |
|
- | |||||
| 71 | 5303310515 | Cover-wiring |
|
$ 368.97 | |||||
| 74 | 5308003107 | Spacer-cooktop |
|
- | |||||
| 76 | 318056004 | Frame-front |
|
- | |||||
| 77 | 318018001 | Rail-drawer Lh |
|
- | |||||
| 77 | 318018000 | Rail-drawer Rh |
|
- | |||||
| 80 | 5303324473 | Bracket-oven |
|
- | |||||
| 81 | 5303301261 | Spring,oven |
|
- | |||||
| 83 | 318089200 | Liner-oven Assy, Small |
|
- | |||||
| 83 | 318089608 | Liner-oven,comp. |
|
- | |||||
| 84 | 3204822 | Gusset, Rear, Rh |
|
- | |||||
| 84 | 3204823 | Gusset, Rear, Lh |
|
- | |||||
| 84 | 318055901 | Gusset-rear |
|
- | |||||
| 86 | 5303310524 | Channel-hinge |
|
- | |||||
| 87 | 318111800 | Plate-mounting,cord Set |
|
- | |||||
| 88 | 5303311160 | Rod-latch |
|
- | |||||
| 102 | 318111901 | Support Oven Front |
|
- | |||||
| 127 | 318317100 | Adapter Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 137 | 3204318 | Plate-strike |
|
- | |||||
| 139 | 318042900 | Bracket,filler |
|
- | |||||
| 140 | 318071300 | Retainer-insulation |
|
- | |||||
| 141 | 318003600 | Thermostat-safety |
|
$ 293.37 | |||||
| 142 | 318123901 | Deflector |
|
- | |||||
| 191 | 5303304030 | Bracket Corner |
|
- | |||||
| 217 | 316042300 | Plate,warning |
|
- | |||||
| 260 | 318055500 | Support-gusset |
|
- | |||||
| 261 | 08014183 | Grill-broiler, Small Oven |
|
- | |||||
| 262 | 08011954 | Support-oven Front |
|
$ 47.60 | |||||
| *51403 | 3204817 | Plug, Button |
|
- | |||||
| *51404 | 5303051099 | Nut, Hex, 10-32 |
|
- | |||||
| *51405 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *51406 | 5303307980 | Screw, 8-32 X 7/16 |
|
Immediately | $ 14.18 | ||||
| *51407 | 5305151612 | Nut |
|
- | |||||
| 170A | 318175700 | Bracket,anti-tip ,rh |
|
- | |||||
| 170B | 318175701 | Bracket,anti-tip ,lh |
|
- | |||||
| 89A | 318095901 | Motor-latch |
|
- | |||||
| 89B | 318120702 | Switch-latch |
|
$ 111.67 |
